Place of Origin: | China |
Brand Name: | KAILITE |
Certification: | CE FCC ROHS |
Model Number: | P6 |
Minimum Order Quantity: | 1 Square Meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case ; Flight case |
Delivery Time: | 7-14 work days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 6000 Square Meters Per Month |
Pixel Pitch: | 6 Mm | Module Size: | 192*192mm |
---|---|---|---|
Module Power: | 35w | Led Chip: | Smd3535 |
Avg Power Consumption: | 450W/sqm | Max Power Consumption: | 900W/sqm |
Feature: | High Brightness | ||
Highlight: | RGB SMD Led Screen,Electronic Advertising SMD Led Screen,35w Led Outdoor Display Board |

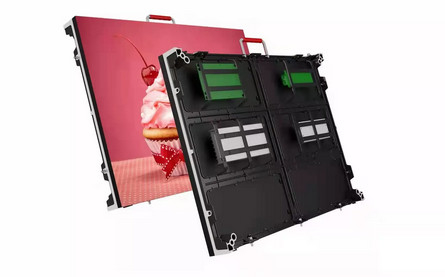

Rgb Smd3535 Electronic Advertising Led Outdoor Screen Display Board Approved Ce Fcc
Product Description
Module Parameter |
Item |
Specification Parameter |
Pixel Pitch,Resolution rate,size |
6mm,32*32,192*192mm |
|
Pixel color, Pixel LED
|
1R1G1B, SMD3535 |
|
Working voltage,Module Power |
DC5V,30W
|
|
Driving IC,Driving way |
MBI5124 1/8sacn |
|
HUB |
HUB75 |
|
Cabinet Parameter |
Material,Cabinet Weight(kg/Cabinet) |
Iron,35kg/Cabinet |
Resolution rate,size,Module quantity |
192*192,960*960mm,5*5 |
|
Density |
27777 dot/sqm |
|
White balance ,Color temperature |
6500 CD/,6500K |
|
view angel,Non-Flatness,Module interval |
H:120°;V:120°,<0.5mm,<0.5mm |
|
Maximal power/,Average power/ |
850W/,400W |
|
Frame frequency,Refresh frequency,Gray grade |
60Hz,1200-2000Hz,13bit |
|
Control system,System supports |
Novastar / Linsn /Synchronous,Asynchronous |
|
Working temperature,Protection grade |
-20℃ - +50℃,Front/Back:IP65/IP54 |
Application
Full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
LED Advertising Display Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
FAQ
Q1: Can I have a sample order for led Screen?
A1: Yes, we welcome sample order to test and check quality. Both for LED module or a whole screen
Q2: What about the lead time?
A2: Order less than 40 square meter led time take 15 working days
Q3: Do you have any MOQ limit for led light order?
A3: Low MOQ, 1 square meter or a module checking is available
Q4: How do you ship the goods and how long does it take to arrive?
A4: We mostly accept FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
For more detail,welcome to contact scarlett whatsapp/wechat/facebook+8618819440154
