Place of Origin: | shenzhen |
Brand Name: | kailite |
Certification: | CE RoHS UL Certifications |
Model Number: | P4.81 |
Minimum Order Quantity: | 5 |
---|---|
Price: | US $20-500 / Square Meter |
Packaging Details: | woodenbox |
Delivery Time: | 15~19 work days |
Tube Chip Color: | Full Color | Pixels: | 4.81mm |
---|---|---|---|
Physical Density: | 43222dots/sqm | Module Size: | 250mm*250mm |
Configuration: | RGB | Led Lamp: | Smd 3528 |
Weight: | 0.32kg | Maximum Power: | 780W/㎡ |
Highlight: | P4.81 Outdoor Rental LED Screen,SMD 2727 Outdoor Rental Led Screen,Aluminum RGB Outdoor Rental Led display |

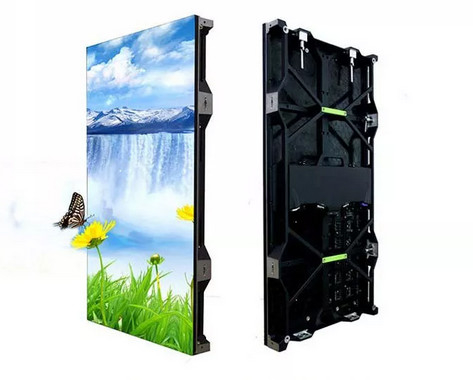

size 500*500 led cabinet high quality P4.81 die casting rental indoor led screen for rental size 500*500 led cabinet
Quick Details:
1, Standard cabinet size: Customized, cabinet weight: 40kg/Sqm.
2, Grey Level: 16 Bit
3, Recommended minimum viewing distance: 5-7m.
4, Material: Die Casting Aluminum
5, Refresh Rate: 1920Hz
6, IP Rating: IP65
Specifications:
led module parameter | ||
Technical parameters | UNIT | parameters Values |
Pixel pitch | mm | 4.81 |
module size | mm | 250*250 |
Physical density | dots/㎡ | 65536 |
Pixel configuration | RGB | 1,1,1 |
Driving method | Constant current 1/13scan | |
Led lamp | Smd | 3528 |
module resolution | dots | 52*52 |
Module weight | Kg | 0.32 |
Ingress protection | IP43 | |
Module consumption | W | 25 |
led display parameter | ||
Viewing angle | Deg. | H120 V120 |
Viewing distance | m | 5-35 |
Maximum power | W/㎡ | 780w |
Frame Frequency | Hz | ≥60 |
Refresh frequency | Hz | ≥1200 |
Equilibrium brightness | cd/㎡ | ≥1500 |
Working environment temperature | 0C | -30~60 |
Display working voltage | VAC | 220V±15%/110V±15% |
Gray scale/color | ≥16.7M color | |
Input signal | RF S-Video RGB etc | |
Control system | Nova/Linsn control system | |
Mean free error time | hours | >5000 |
life time | hours | >100,000 |
Lamp failure frequency | <0.0001 |
Features:
1. Light weight: The aluminum die-casting technology we adopt is about 7.5kg which is convenient for assembly and disassembly
2. Hight refresh rate: Over 1200 Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.
3. Low brightness and High gray scale:14Bit-16Bit gray scale to bring excellent performance when
brightness is reduced to 25%.
4. Easy to install: Don't need to worry about the installation, it is easy, because of the design of the Die casting cabinet, Just like building block
5. High IP: The IP65 insures the reliable operation in different enrionment, and it is more safe
6. Low brightness and Hight gray scale:14Bit-16Bit gray scale to bring perfect display performance with no shadows
advantages:
1. 7 Years led display factory, We are led screen manufacturer for 7 years, we have rich experience in outdoor and indoor led display, quality is guaranteed
2. Up to 60% customer referral rate
3. Price advantage, Because we are factory, our price is 5%-10% lower than middleman and trafficker at same level
4. Our sales is peofessional and will give you Detailed answers for your concerns, and we have a strong technical team for your special needs,such as OEM and ODM service
5. Our Tenet: put coustomers in mind, Customer requirements are fundamental to us, we make different solutions accroding different requirements of customers
