Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE/UL/RoHS/ISO9001/FCC/CCC |
Model Number: | P8 |
Minimum Order Quantity: | 2 Square Meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case Packing ; flightcase packing |
Delivery Time: | 18-22 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 9000 Square Meters Per Month |
Cabinet Size: | 960mm*960mm*108mm | Cabinet Resolution: | 120*120 |
---|---|---|---|
Cabinet Materials: | Die Casting Aluminum / Magnesium Alloy | Brightness: | More Than 6500 Nits |
Refresh Rate: | 1920-3840Hz | Warranty: | 2 Years |
Brightness Control: | Manual/Automatic | Input Voltage: | 110-240V AC±10% |
Highlight: | P10 Full Color Outdoor Display Billboard,Outdoor Led Display Billboard,3840Hz Outdoor Display Billboard |

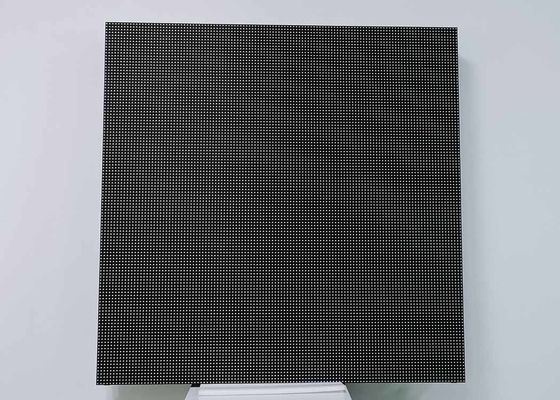

High brightness P4 P5 P8 P10 Full Color Outdoor Led Display For advertising led billboard
Quick Details of 960×960K series of outdoor led screen
1) Cabinet size is 960×960×108mm

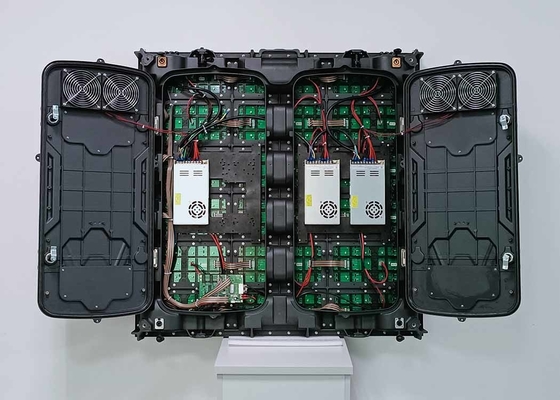

2) User friendly, as it's with die casting aluminum cabinet, more light. and it's with Power
and data connectors, make it convenient for installation
3) Available models for this series are P2.5, P3.07 P4, P5, P6.6, P8, P10 etc
4) Full waterproof design, could be reach IP67 grade
5) With more than 6500 nits high brightness, people could be seen clearly about the advertisments
even with strong sunshine

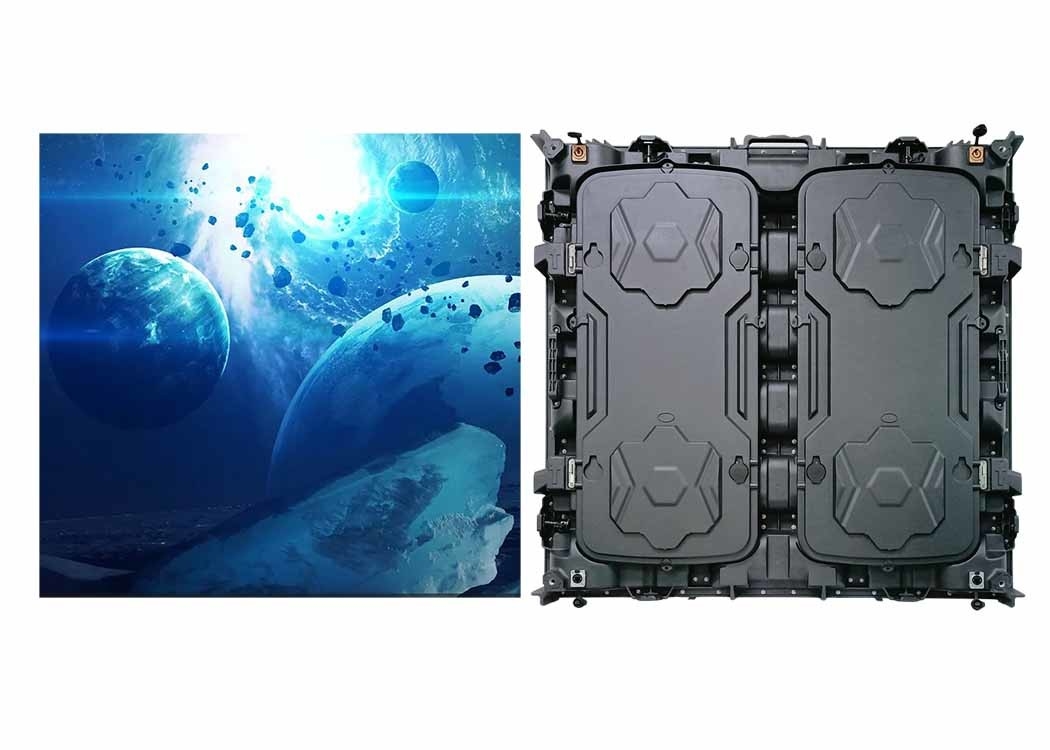

Description of 960K series of outdoor led screen
960K series is specialized designed for outdoor fixed installation projects, it's with size of 960*960*108mm, much more
light compared to Iron cabinet, it's just about 25Kgs each cabinet. and it's equipped with Power and data connectors, which make it easy for doing the wiring job. the most big advatages of 960K series outdoor led screen is that, it's with high grade waterproof level, which can be reach IP67, could be used in heavy rainy days with no problem.
Specifications of 960K series of outdoor led screens
Item | P8 outdoor led screen |
Color | Full color |
Use environment | outdoor |
Pixel pitch | 8mm |
Module size | 320*160mm |
Physical density | 15625 dots/㎡ |
Pixel configuration | 1R1G1B |
LED chip | SMD3535 |
Module resolution | 40*20 |
Module power | 38w |
Recommended viewing distance | ≥8m |
Best viewing angle | H: 140°; V:140° |
Maximum power consumption | 850w |
Average power consumption | 360w |
Cabinet size | W960m×H960mm |
Standard cabinet resolution | 120*120 |
Driving method | 1/5 Scan, Constant Current |
Video frame rate | ≥60 Hz |
Rate refresh | 1920-3840Hz |
White balance brightness | ≥6500cd |
Operating temperature/Humidity | -30℃~+60℃ |
Ingress protection | IP65 |
Input voltage | 110-240V AC±10% |
Gray scale /Color | Display Colors ≥16.7N(Synchronize) |
Brightness control | Manual/Automatic |
Input signal | DVI, HDMI, SDI VGA etc. |
Control system | Novastar; Linsn etc. |
MBTF | >5000 hours |
Life time | >100,000 Hours |
The rate | <0.0002 |
Features of 960K series outdoor led display:
1) Available models for this series are P2.5, P3.07 P4, P5, P6.6, P8, P10 etc.
2) Cabinet size: 960×960×108mm.

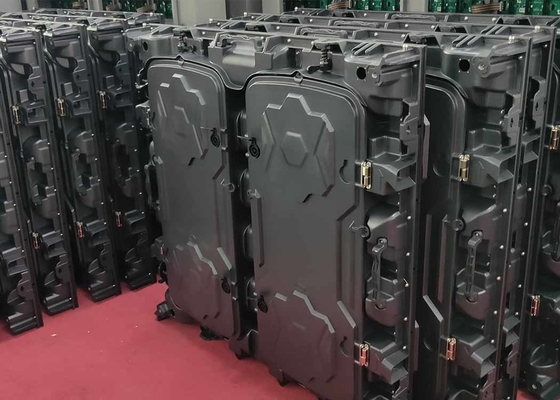

3) Die casting Aluminum cabinet which is more precise, flatness of led screen is great.
4) High brightness, more than 6500 nits
5) With high level IP grade, could be reach IP67
6) High refresh rate and high resolution, Displaying good quality images.
Application of 960K series outdoor led screen:
Outdoor led screens are widely used in different places, such as buildings, malls, high spead ways, it's usually comes with high brightness, so it's very good for showing dynamic advertisments
compared to traditional screen, it's dynamic, full color, can be showing any media as you want. bleow is the more applications, customers ususally ask
Supermarket, large-scale shopping malls, star -rated hotel, travel agencies.
Bank, insurance companies, post offices, hospital, schools
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room
Movie theaters, clubs, stages
Our Advantages:
Our Advantages and Core Value for you as below
1) we are leading comprehensive led screen manufacturer with strong production and OEM/ODM service capacity.
2) Our most competitive factory price, with guaranteed quality.
3) Strict quality control ability for full production process, with our Innovative "Dual checking mode" —QC first, sales person check and confirm repeatly. quality is well guaranteed.
4) Worry-free Service (Save your time and easy of your mind)
A. take good care of your order with all our heart.
B. Quick response with solutions for any your questions.
5) we have full experience exporting to US for more than 6 years, will not bring you extra cost as wrong handling.
6) A partner not only to take good care of your orders, but also other affairs in China if you need.
After-sell Service:
1) 2 yaers quality guarantee period for all parts
2) providing free frame structure drawing, as well as power and data cables wiring diagram.
easy for your to set up the ld screen .
3) Free remote control debuggine serice if you need
4) we will reponse you anytime in 7*24 houres if you have any question about the led screen,
5) Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
6) Free technical training for how to use and handle the software.
FAQ:
1. Except the P8 model, are there any other models for this 960K series outdoor led screens?
yes, for this indoor led screen series, we could make P2.5, P3.07 P4, P5, P6.6, P8, P10 etc
2. Are you factory? and your warranty?
yes we are 14 years leading factory, specialzied in led screen industry. we provide 2 years warranty and lifetime maintenance
3. Could i have a sample before place mass order?
Yes sure, sample is available for your test
4. What's your delivery time?
Wthin 18-20 work days after we receiving the deposit
5. Is it okay to print my logo on your product?
Yes that's okay for us, we provide free printing service
6. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
