| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P4,P5, P8, P10 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 22-24 days |
| Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
| Supply Ability: | 8000 square meters per month |
| Pixels: | 8mm, 10mm Outdoor LED Fixed Installation Screen | Function: | Advertising, Concert |
|---|---|---|---|
| Warranty: | 2 Years | Color: | 1R1G1B |
| LED Type: | SMD1921 SMD3535 | Brightness: | 5500nits 6000nits |
| Cabinet Size: | 960*960mm | Module Size: | 320*16mm |
| Highlight: | P8 Outdoor Advertising Led Display,6000nits Outdoor Advertising Led Display,P10 Outdoor LED Billboard |
||
High Brightness P8 P10 Outdoor Advertising Led Display Rear maintenance
Fixed Installation Led Screen High Brightness Outdoor P8 P10 Rear maintenance Led Display
Description of 960*960mm series of outdoor led screen
960*960 series is specialized designed for outdoor fixed installation.The size of cabinet is 960*960mm. The weight of cabinets are more light and easy to install.Great waterproof , it can be reach IP65 and even can be worked in extremely harsh environment. Under strong sunshine, it can also keep high brightness and ultra high definition.
Specifications of 960*960mm series of outdoor led screens
| Item | P4 | P5 | P8 | P10 |
| Pixel pitch | 4mm | 5mm | 8mm | 10mm |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 80×40 | 64×32 | 40×20 | 32×16 |
| Physical density | 62500 dots/㎡ | 40000 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
| LED type | SMD1921 | SMD1921 | SMD3535 | SMD3535 |
| Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm | 960×960×mm |
| Cabinet resolution | 240×240 | 192×192 | 120×120 | 96×96 |
| Cabinet weight | 25kg | 25kg | 25kg | 25kg |
| Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Maintenance way | Rear | Rear | Rear | Rear |
| Best viewing distance | ≥4m | ≥5m | ≥8m | ≥10m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/10Scan | 1/8 Scan | 1/5 Scan, | 1/2 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5500nits | ≥5500nits | ≥6000nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 | IP65 | IP65 |
| Max power consumption | 0.85kw | 0.85kw | 0.85kw | 0.85kw |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of 960*960mm series outdoor led display
1) Cabinet size:960*960*108mm
2) High brightness more than 5500nits
3) Video frame rate:65Hz
4) Easy and fst installation
5) Led screen could be working in -30℃-60℃

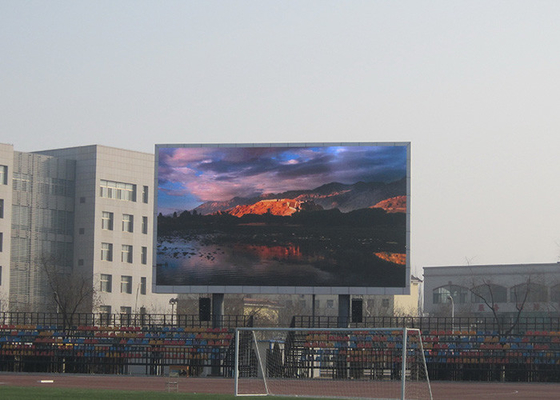

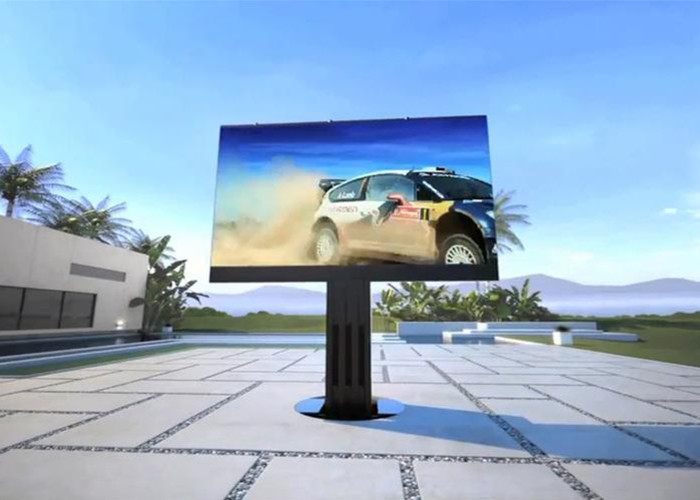

Product pictures
Application of 960*960mm series outdoor led screen
Outdoor fixed LED display can be used in different area, such as at stage, bank, mall, exhibition, stadium, airport .It can suitable for outdoor areas,even high bringhtness or heavy rainy days.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. we put quality frist.We will conduct product inspection before,during,after production.
3. Good service. we support ODM/OEM service.
4. direct price.We are the original manufacturer, no middleman, more saving money.
After-sell Service:
1) All parts are guaranteed for two years.
2) Any question, any time, we will be stand here for you by 7*24 hours.
3) Installation guid manual of the led screen will be provide for you. No need to worry about assembling the led screen.
4) Free technical training for how to use and handle the software.
FAQ:
1.Q: Can you provide me a samplefor led screen?
A:Sure, free feel to contact us!
2.Q: How long is the warranty?
A: We offer 2 year warranty.
3:Q: What is your post-sale service?
We will offer instructions to guide you on installation, you can also contact us to seek a support.
4. How can we guarantee quality?
Always product a pre-production sample before mass production and do finalinspection before shipment for every order.
5. How long will it take to receive the goods?
About 22-24 days.
