Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS CCC FCC UL ISO9001 |
Model Number: | P5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case or flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
Supply Ability: | 8000 square meters per month |
Color: | Full Color | Pixel Pitch: | 5mm |
---|---|---|---|
Pixel Density: | 40000 Dots/㎡ | Screen Dimension: | Customized |
Refresh Rate: | 1920-3840Hz | Brightness: | ≥5500nits |
Application: | Outdoor Advertising Led Display Screen | Maintenance Way: | Rear |
Life Span: | 100000hours | Warranty: | 2 Years |
Highlight: | 5500nits Outdoor Advertising Led Display,SMD1921 Outdoor Advertising Led Display,5500nits Advertising LED Screen |
5500nits Outdoor Advertising Led Display Commercial Programmable
Customized High Refresh Rate Commercial Programmable Digital Outdoor Fixed P4 P5 P8 P10 Advertising LED Screen
Quick details of Outdoor Advertising LED Display
1. Led type: SMD1921
2. Module size: 320x160mm
3. Cabinet size: 960*960mm
4. Input voltage: 110-220v±10%
5. Ingress protection: IP65
Production details
Item | KP4 | KP5 | KP8 | KP10 |
Pixel pitch | 4mm | 5mm | 8mm | 10mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 80×40 | 64×32 | 40×20 | 32×16 |
Physical density | 62500 dots/㎡ | 40000 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
LED type | SMD1921 | SMD1921 | SMD3535 | SMD3535 |
Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm | 960×960×mm |
Cabinet resolution | 240×240 | 192×192 | 120×120 | 96×96 |
Maintenance way | Rear | Rear | Rear | Rear |
Best viewing distance | ≥4m | ≥5m | ≥8m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/10Scan | 1/8 Scan | 1/5 Scan, | 1/2 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥5500nits | ≥5500nits | ≥6000nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP65 | IP65 | IP65 | IP65 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Cabinet pictures:

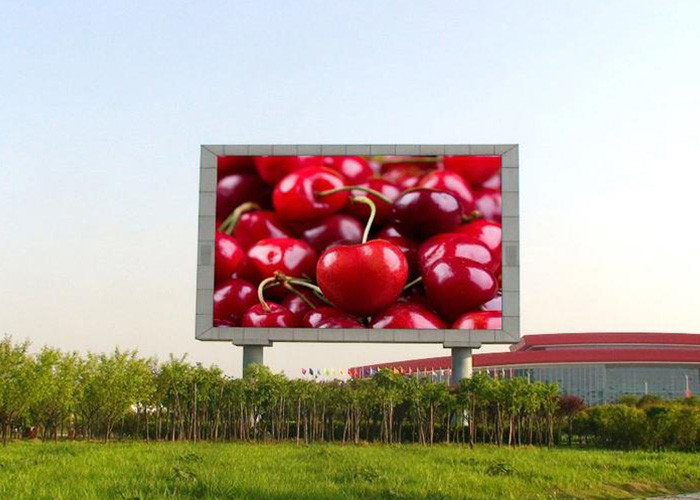

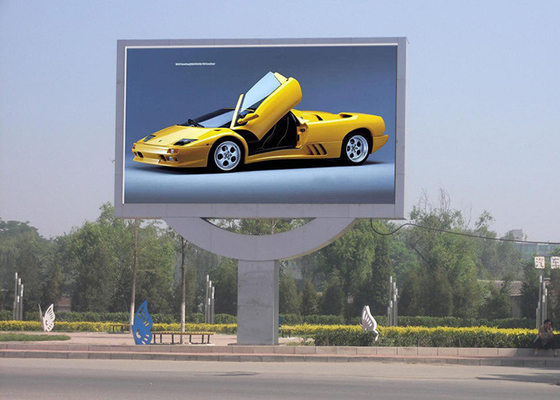

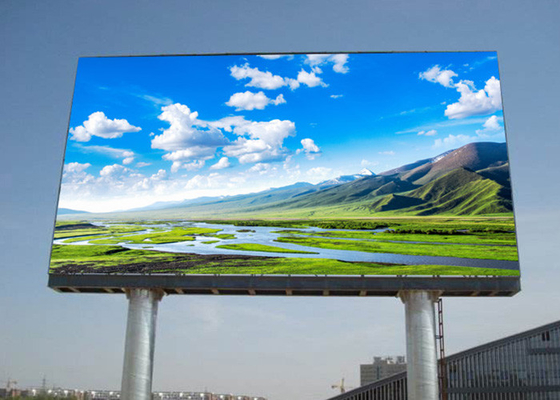

Application Examples
After-sell Service:
1) 2 years quality guarantee period for all parts.
2) Providing free frame structure drawing, as well as power and data cables wiring diagram. easy for your to set up the ld screen.
3) Free remote control debuggine serice if you need.
4) We will reply you anytime at all hours, if you have any questions about the led display.
5) Free technical training for how to use and handle the software.
FAQ:
1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
3. How about your delivery time?
Generally, it will takes about 22-24 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
