Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS UL FCC CCC ISO9001 |
Model Number: | P2.5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case or flight case |
Delivery Time: | 22-24 days on average |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
Supply Ability: | 8000 square meters per month |
Product Name: | HD Fixed LED Indoor Full Color Display | Screen Dimension: | Customized |
---|---|---|---|
Brightness: | ≥800nits | Module Resolution: | 128*64 |
Pixel Density: | 160000 Dots/㎡ | Application: | Live Events, Conference, Show, Concert, Ads |
Highlight: | P4 Indoor Full Color Led Display,800nits Indoor Fixed LED Screen,800nits High Definition Led Display |

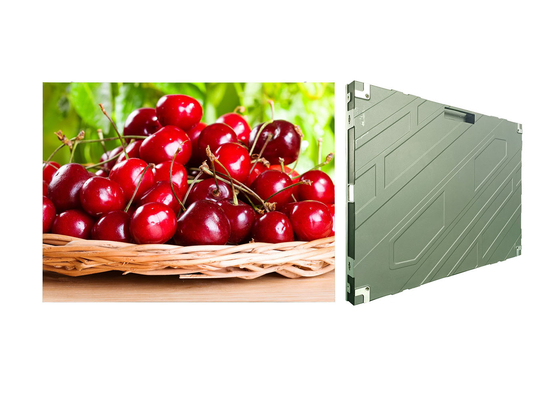

High Definition P2 P2.5 P3.07 P4 Indoor Full Color Led Display 800nits For Conference Ads
Quick details of Indoor fixed LED Screen
1, Pixel Pitch: 2.5mm
2, SMD LEDs, Wide viewing angle: H: 160°; V:160°
3, Grey Level: 16 Bit.
4, Recommended viewing distance: ≥2.5m.
5,Cabinet material: Iron or die-casting aluminum.
Specification of products
Item | KP2 | KP2.5 | KP3.07 | KP4 |
Pixel pitch | 2mm | 2.5mm | 3.076mm | 4mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 160×80 | 128×64 | 104×52 | 80×40 |
Physical density | 250000 dots/㎡ | 160000 dots/㎡ | 105688 dots/㎡ | 62500 dots/㎡ |
LED type | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
Cabinet size | 640*480*59mm | 640*480*59mm | 640*480*59mm | 640*480*59mm |
Cabinet resolution | 320*240 | 256*192 | 208*156 | 160*120 |
Maintenance way | Front | Front | Front | Front |
Best viewing distance | ≥2.5m | ≥2.9m | ≥3m | ≥3m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/40 Scan | 1/32 Scan | 1/26 Scan, | 1/20 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of Indoor Fixed LED Screen
1. High definition, high refresh rate(1920-3840Hz), full color, the screen looks beautiful and colorful
2. Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output
3. Front maintenance way, easy to replace module and repair components
4. Low power consumption, long life time(>100,000 Hours)
Application Of Indoor Fixed LED Screen
The products are widely used for advertising, shows, square, concert, sporting event, festival, conference, grand theater, large song and dance party, fashion show.

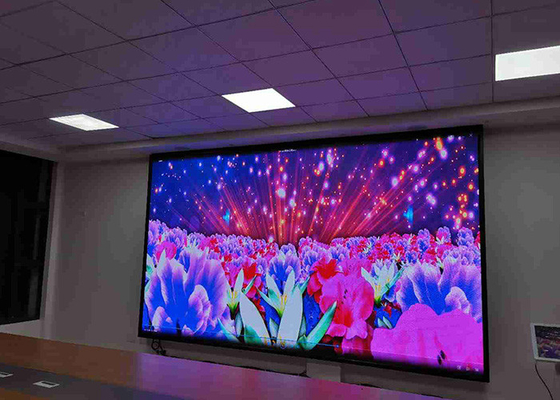

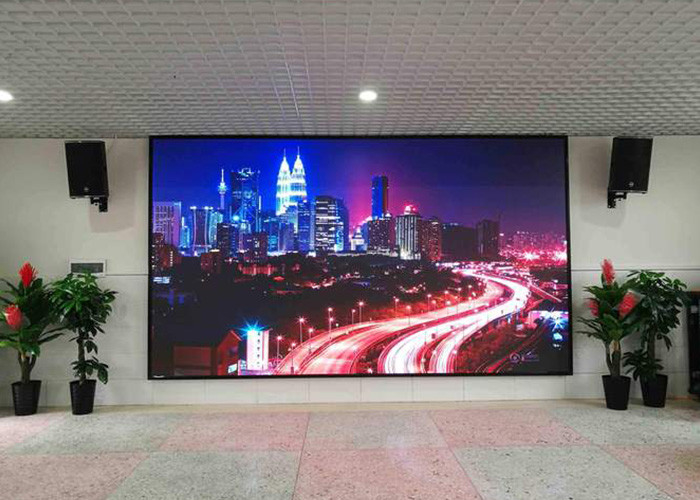

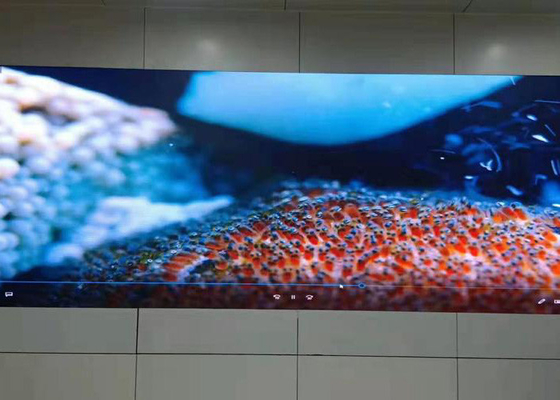

Cases
Advantages:
1. High definition, full color, high refresh rate, seamless display make the screen beautiful and colorful.
2. Our most competitive factory price, with guaranteed quality.
3. Strict quality control ability for full production process, with our Innovative "Dual checking mode" —QC first, sales person check and confirm repeatly. quality is well guaranteed.
4.Worry-free Service (Save your time and easy of your mind).
5.Our company focus on LED screen production for 14 years, we have professional engineers and sales team.
After-sell service:
1) 2 years quality guarantee period for all parts.
2) providing free accessories, such as power and data cables wiring diagram, help you to set up the ld screen.
4) quick reponse anytime in 7*24 houres if you have any question about the led screen.
5) Providing customer with the loading program, so they can use as soon as they install the led screen,don't need to debug again.
6) Free technical training for how to use and handle the software.
FAQ:
1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. Can your factory accept OEM or ODM?
Yes,We can accept OEM and ODM,.and can print logo.
3. What's your package and shipping way?
Goods are packed with wooden case or flight case as you need; delivered by air shipping or sea shipping.
4. Could i have a sample before place mass order?
Yes sure, sample is available for your test.
5. What is the delivery time?
A: About 22-24 days after we receiving the deposit.
