Name: SMD3535 P10 IP65 Outdoor Full Color Led Display Advertising Screen
Brand: SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD
SKU: P4,P5, P8, P10
Price: Negotiable USD
Availability: InStock

Home Products Outdoor Full Color Led Display

SMD3535 P10 IP65 Outdoor Full Color Led Display Advertising Screen

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	KAILITE
Certification:	IOS9001 , IOS2000,FCC,RoHS,CE,CCC
Model Number:	P4,P5, P8, P10

Payment & Shipping Terms:

Minimum Order Quantity:	2 square meters
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	about 22 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	8000 square meters per month

Contact Now

Detailed Product Description

LED Type:	SMD3535	Color:	1R1G1B
Brightness:	6000nits	Cabinet Size:	960mm*960mm
Warranty:	2 Years	Refresh Rate :	1920-3840Hz
Ingress Protection:	IP65	Best Viewing Angle:	H: 140°; V:140°
Highlight:	SMD3535 Outdoor Full Color Led Display , 1R1G1B Outdoor Full Color Led Display , SMD3535 P10 LED Display

SMD3535 P10 IP65 Outdoor Full Color Led Display Advertising Screen

SMD3535 P10 Led Display High Brightness Advertising Screen Big Size sports perimeter led display

Quick details of sports perimeter led display

1) Die casting aluminum cabinet with size of 960*960mm.

2) Omnidirectional waterproof, prefect work in rainy days.

3) Easy maintenance and fast installation.

4) Adopt anti collision design to protect athletes and screens better.

Specifications of sports perimeter led display

Item	P6.67	P8	P10
Pixel pitch	6.67mm	8mm	10mm
Module size	320*160mm	320*160mm	320*160mm
Module resolution	48×24	40×20	32×16
Physical density	22477 dots/㎡	15625 dots/㎡	10000 dots/㎡
LED type	SMD3535	SMD3535	SMD3535
Cabinet size	960mm×960mm	960mm×960mm	960mm×960mm
Cabinet resolution	144×144	120×120	96×96
Cabinet material	Die casting aluminum	Die casting aluminum	Die casting aluminum
Maintenance way	Rear	Rear	Rear
Best viewing distance	≥6.6m	≥8m	≥10m
Best viewing angle	H: 140°; V:140°	H: 140°; V:140°	H: 140°; V:140°
Driving method (Constant Current)	1/6 Scan	1/5 Scan	1/2 Scan,
Video frame rate	≥60 Hz	≥60 Hz	≥60 Hz
Refresh rate	1920-3840Hz	1920-3840Hz	1920-3840Hz
Brightness	≥5500nits	≥5500nits	≥6000nits
Grey Level	12-16bit	12-16bit	12-16bit
Ingress protection	IP65	IP65	IP65
Life Time	>100,000 Hours	>100,000 Hours	>100,000 Hours
The rate	<0.0002	<0.0002	<0.0002

Features of sports perimeter led display

1. Adopt anti collision design. protect athletes and screens better.

2. Easy maintenance and quickly disassembly

3. 100% waterproof. even can work on extreme weather

4. Large viewing angle.can be seen clear with different angles

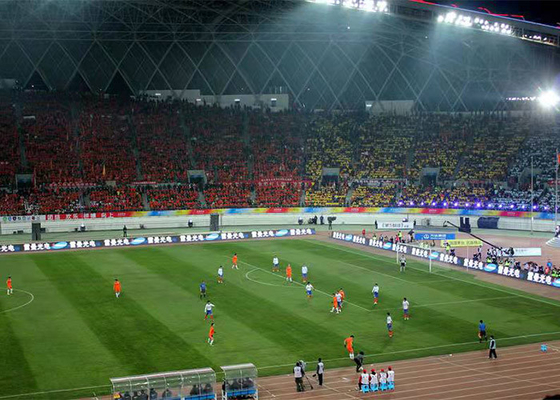

SMD3535 P10 IP65 Outdoor Full Color Led Display Advertising Screen 0

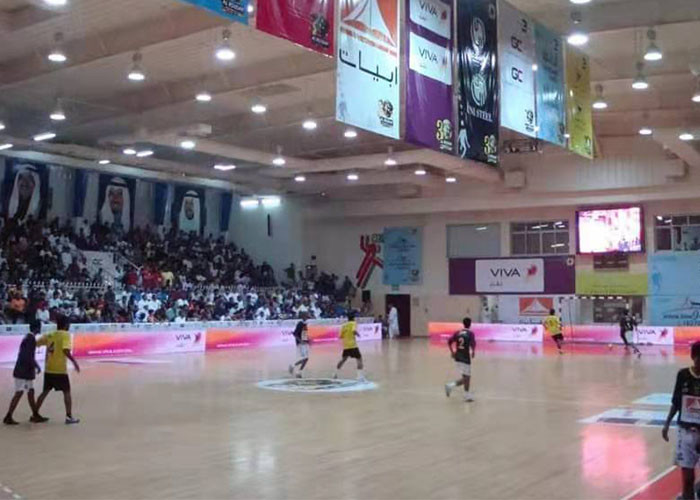

SMD3535 P10 IP65 Outdoor Full Color Led Display Advertising Screen 1

SMD3535 P10 IP65 Outdoor Full Color Led Display Advertising Screen 2

Why choose KAILITE?

1. We are a 14 years leading manufacturer specialized in led display industry.

2. High quality.We will conduct product inspection every working processes.

3. Quickly response.we will response with 24 hours

4. Cost-effective price.We are the original manufacturer, no middleman make the difference.

After-sell Service:
1) 2 yaers quality guarantee period for all parts.

2) We will provide free frame structure drawing, as well as power and data cables wiring diagram. easy for your to set up the led screen .

3) We can provide you long-distance control if you need.

4) keep in touch to solve any problems.

5) Remote guidance installation and maintenance.

FAQ:

1. I want to have an sample, can you provide?
Sure, free feel to contact us!

2. What is the warranty of your led display?
2 years warranty.

3. Are you a trade company or a factory?

We are a factory. We can provide you factory price.

4. How long will it take to receive the goods?

About 22-24 days.

5. Do you support print logo?

Yes.we can provide this service to you for free.
