Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 FCC CCC UL |
Model Number: | P8 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
Supply Ability: | 8000 square meters per month |
Pixel Pitch: | 8mm | Module Size: | 320*160mm |
---|---|---|---|
Module Resolution: | 40*20 | Cabinet Size: | 960*960mm |
Cabinet Resolution: | 120*120 | Maintenance Way: | Rear |
Screen Dimension: | Customized Size | Brightness: | ≥5500nits |
Application: | Sport Events Stadium Commercial Ads | Color: | 1R1G1B |
Highlight: | 5500nits High Brightness LED Display,1R1G1B High Brightness LED Display,5500nits High Definition LED Display |
5500nits High Brightness LED Display For Outside Commercial Ads
High Brightness P6.67 P8 P10 Stadium LED Display for Outside Commercial Ads
Quick details of P8 Stadium LED Display
1. Physical density: 15625 dots/㎡
2. Input voltage: 110-220v±10%
3. Best viewing distance: ≥8m
4. Refresh rate: 1920-3840Hz
5. Life span: 100000 hours
Product details:
Item | P6.67 | P8 | P10 |
Pixel pitch | 6.67mm | 8mm | 10mm |
Module size | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 48×24 | 40×20 | 32×16 |
Physical density | 22477 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
LED type | SMD3535 | SMD3535 | SMD3535 |
Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm |
Cabinet resolution | 144×144 | 120×120 | 96×96 |
Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum |
Maintenance way | Rear | Rear | Rear |
Best viewing distance | ≥6.6m | ≥8m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/6 Scan | 1/5 Scan | 1/2 Scan, |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥5500nits | ≥5500nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP65 | IP65 | IP65 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 |
Features of Stadium LED Display
1. High brightness(≥5500nits), keep clear and bright under the sunlight.
2. IP65, high ingress protection grade, protect from dust and moisture.
3. Long life time(100000 hours)
4. Wide viewing angle(H: 140°; V:140°), friendly to audience on the stage.

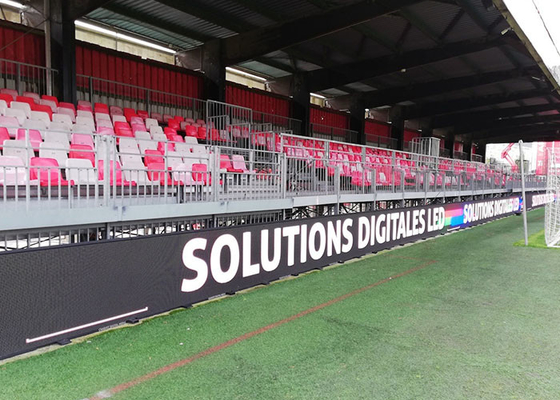

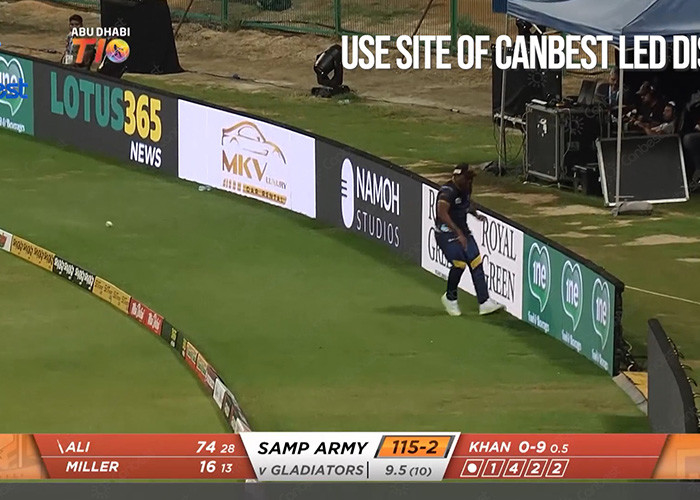

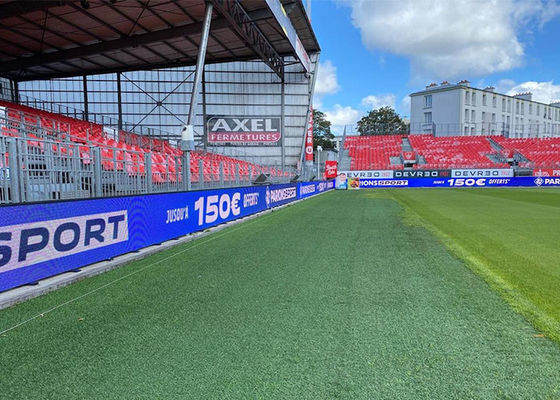

Applications of Stadium LED display: all kinds of sports stadium for advertising and competition information.
After-sell service:
1. 2 years warranty period.
2. providing free frame structure drawing and power and data cables wiring diagram.
3. Free remote control debuggine serice if necessary for you.
4. Quick response at 24 hours if there is any question.
5. Providing customer with the loading program, so they can use as soon as they install the led screen,don't need to debug again.
6. Free technical training for using the software.
FAQ:
1. Can you print my logo on the products?
Yes, of course. we have free printing service.
2. Are you factory?
yes, we are 14 years leading factory, specialzied in led screen industry.
3. Can your factory accept OEM or ODM?
Yes,We can accept OEM and ODM.
4. How long does it take for transportation?
About 22-24 days.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
Contact Person: Dalton
Tel: +8618314988649
