| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P6.67, P8, P10 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | flight case |
| Delivery Time: | about 22 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000 square meters per month |
| Pixel Pitch: | 6.67mm 8mm 10mm | Cabinet Material: | Die Casting Aluminum |
|---|---|---|---|
| Maintenance Way: | Rear | Brightness: | ≥5500nits/≥6000nits |
| Ingress Protection : | IP65 | Life Time : | >100,000 Hours |
| Warranty: | 2years | Color: | 1R1G1B |
| Highlight: | SMD3535 Outdoor Full Color Led Display,5500nits Outdoor Full Color Led Display,SMD3535 Outdoor Led Billboard |
||
SMD3535 Outdoor Full Color Led Display IP65 Football Led Billboard
P6.67 P8 Outdoor Full Color Led Screen SMD3535 IP65 Football Led Billboard
Description of Football Led Billboard

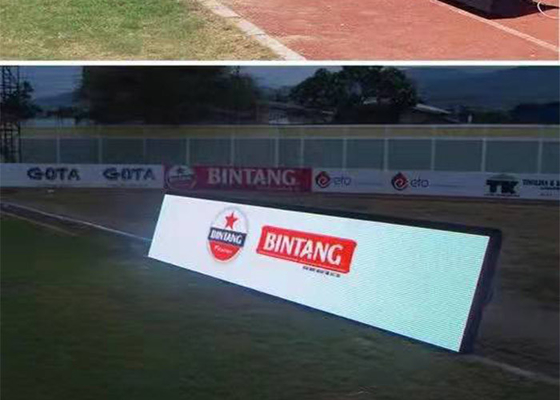

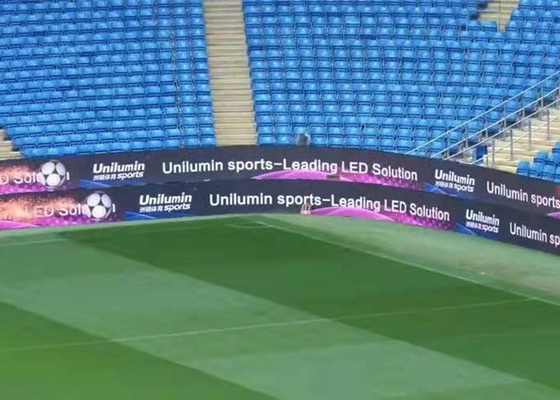

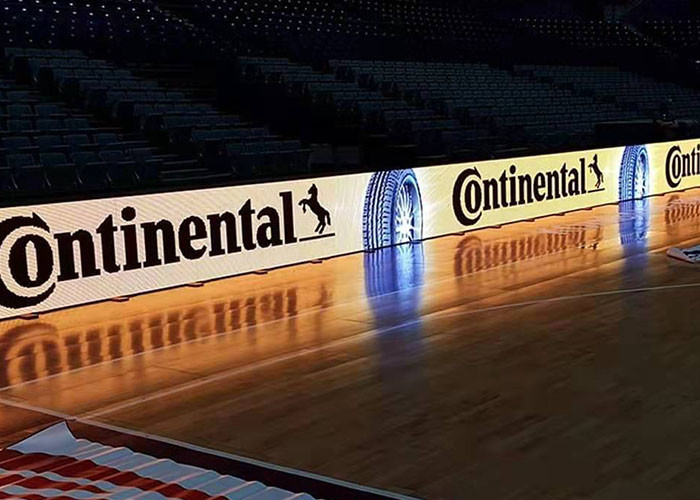

The stadium screen has high brightness and high definition, so that fans can clearly see every detail of the game. The stadium screen can also play advertisements, sponsors' promotional videos and other entertainment programs, bringing viewers a richer audio-visual experience.
Specifications of Football Led Billboard
| Item | P6.67 | P8 | P10 |
| Pixel pitch | 6.67mm | 8mm | 10mm |
| Module size | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 48×24 | 40×20 | 32×16 |
| Physical density | 22477 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
| LED type | SMD3535 | SMD3535 | SMD3535 |
| Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm |
| Cabinet resolution | 144×144 | 120×120 | 96×96 |
| Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Maintenance way | Rear | Rear | Rear |
| Best viewing distance | ≥6.6m | ≥8m | ≥10m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/6 Scan | 1/5 Scan | 1/2 Scan, |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5500nits | ≥5500nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 | IP65 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 |
Feature of Football Led Billboard
1) Adopt die casting aluminum cabinet, lighter and better heat dissipation
2) High brightness, more than 6000 nits
3) Designed by rear maintenance. Easy maintenance and fast installation
4) Adopt anti collision design to protect athletes and screens better.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. High quality.We will conduct product inspection every working processes.
3. Quickly response.we will response with 24 hours.
4. Cost-effective price.We are the original manufacturer, no middleman make the difference.
Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
FAQ:
1. How do you guarantee the quality?
We obtained these certificates IOS9001 , IOS2000,FCC,RoHS,CE,CCC
2. What is the warranty of your led display?
A: 2 years warranty.
3. Are you a trade company or a manufacturer?
We are a manufacturer with 14 years experience specialized in led display industry
4. How long will it take to receive the goods?
About 22-24 days.
5. Do you support print logo?
Yes.we can this service for free.
