Name: IP65 Programmable P6.67 P8 P10 Stadium LED Display For Sports Events
Brand: SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD
SKU: P10
Price: Negotiable USD
Availability: InStock

Home Products RGB LED Screen

IP65 Programmable P6.67 P8 P10 Stadium LED Display For Sports Events

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	KAILITE
Certification:	CE RoHS ISO9001 UL FCC CCC
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	2 square meters
Price:	Negotiation
Packaging Details:	Wooden case/Flight case
Delivery Time:	About 22-24 days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	8000 square meters per month

Contact Now

Detailed Product Description

Product Name:	Programmable P10 Stadium LED Display For Sports Events	Pixel Pitch:	10mm
Module Size:	320*160mm	Module Resolution:	32*16
Cabinet Size:	960*960mm	Cabinet Resolution:	96*96
Screen Dimension:	Customized	Ingress Protection:	IP65
Brightness:	≥6000nits	Maintenance Way:	Rear
Highlight:	IP65 Stadium LED Display , P6.67 P8 Stadium LED Display , IP65 Programmable LED Display

IP65 Programmable P6.67 P8 P10 Stadium LED Display For Sports Events

IP65 Programmable P6.67 P8 P10 Stadium LED Display for Sports Events

Description of Stadium LED Display

Stadium LED display pixel include 6.67mm, 8mm, 10mm, within these pixels,8mm, 10mm are the most hot-selling and highest cost-effective series. You can see it at all kinds of large sports stadium with banner words or scrolling brand names.

Stadium LED Dislay specification(P6.67 P8 P10)

Item	P6.67	P8	P10
Pixel pitch	6.67mm	8mm	10mm
Module size	320*160mm	320*160mm	320*160mm
Module resolution	48×24	40×20	32×16
Physical density	22477 dots/㎡	15625 dots/㎡	10000 dots/㎡
LED type	SMD3535	SMD3535	SMD3535
Cabinet size	960×960×mm	960×960×mm	960×960×mm
Cabinet resolution	144×144	120×120	96×96
Cabinet material	Die casting aluminum	Die casting aluminum	Die casting aluminum
Maintenance way	Rear	Rear	Rear
Best viewing distance	≥6.6m	≥8m	≥10m
Best viewing angle	H: 140°; V:140°	H: 140°; V:140°	H: 140°; V:140°
Driving method (Constant Current)	1/6 Scan	1/5 Scan	1/2 Scan,
Video frame rate	≥60 Hz	≥60 Hz	≥60 Hz
Refresh rate	1920-3840Hz	1920-3840Hz	1920-3840Hz
Brightness	≥5500nits	≥5500nits	≥6000nits
Grey Level	12-16bit	12-16bit	12-16bit
Ingress protection	IP65	IP65	IP65
Life Time	>100,000 Hours	>100,000 Hours	>100,000 Hours
The rate	<0.0002	<0.0002	<0.0002

Features:

1. IP65, full waterproof, suit for outdoor enviroment.

2. High brightness(≥6000nits), the screen still looks clear and beautiful under the sunlight.

3. Use Nationstar lamp and strict quality control test.

4. Low defective rate.

5. Our company focus on LED screen production for 14 years, we have professional engineers and sales team to provide best services.

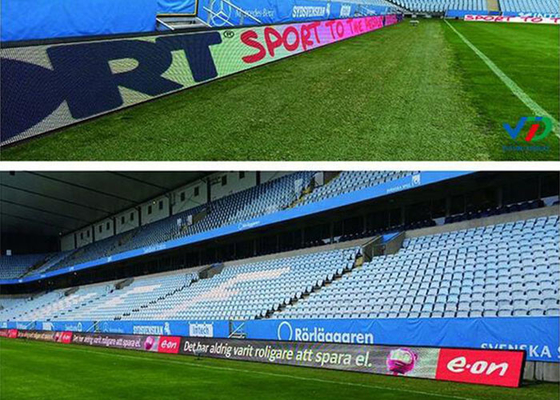

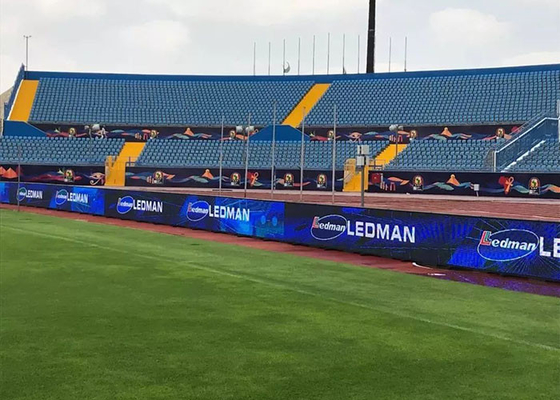

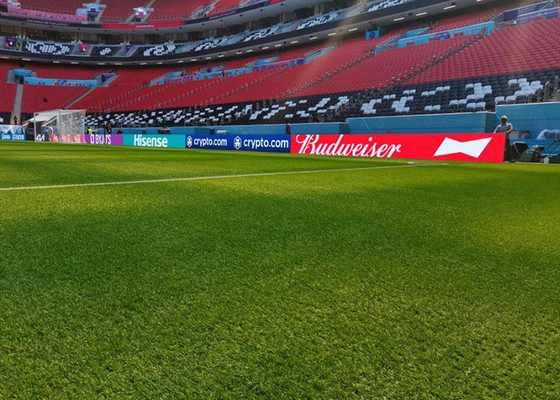

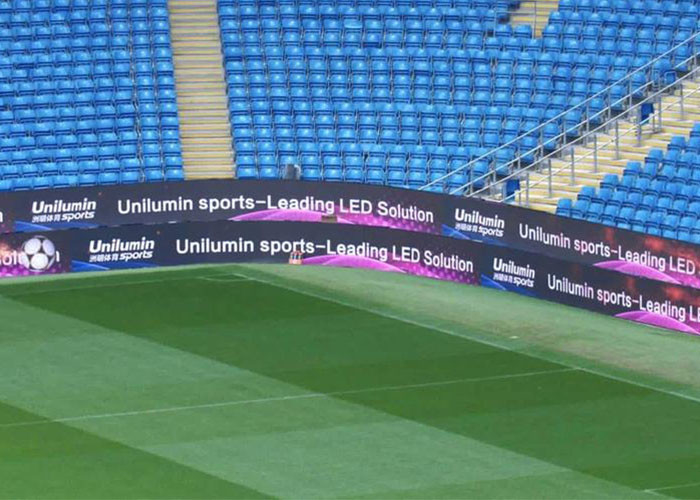

Applications of Stadium LED Display: all kinds of of sports stadium, for commercial ads, competition information, background etc.

IP65 Programmable P6.67 P8 P10 Stadium LED Display For Sports Events 0

Shipping and Package

After-sell Service:
1. 2 years quality guarantee period for all parts.
2. providing free frame structure drawing, as well as power and data cables.
3. Free remote control debuggine serice if you need.
4. We will reponse you anytime in 7*24 houres if you have any question about the led screen.
5. Free technical training for how to use and handle the software.

FAQ:

1. Are you a manufacturer or trading company?
We are a Professional OEM/ODM manufacturer.
2. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
3. When will you make the delivery?
Most time about 22-24 days, also depends on the destination country.
4. What technical supports can you offer?
We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory.

5. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.
