P4 P5 P8 P10 Full Color Led Display Screen High Brightness 6000nits

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	KAILITE
Certification:	CE RoHS ISO9001 UL FCC CCC
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	2 square meters
Price:	Negotiation
Packaging Details:	Wooden case/Flight case
Delivery Time:	About 22-24 days
Payment Terms:	T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability:	8000 square meters per month

Contact Now

Detailed Product Description

Product Name:	High Brightness P10 Outdoor Fixed LED Display	Pixel Pitch:	10mm
Cabinet Size:	960*960mm	Cabinet Resolution:	96×96
Screen Dimension:	Customized	Brightness:	≥6000 Cd/sqm
Application:	Billboard Advertising Signage Stage Performance	Color:	1R1G1B
Physical Density:	10000 Dots/㎡	Warranty:	2 Years
Highlight:	6000nits Full Color Led Display Screen , 1R1G1B p10 full color led module , 6000nits P10 Full Color Led Display

P4 P5 P8 P10 Full Color Led Display Screen High Brightness 6000nits

High Brightness Full Color P4 P5 P8 P10 Outdoor Fixed LED Display Billboard

Quick details of Outdoor Fixed LED Display

1. Module size: 320*160mm

2. Module resolution: 32×16

3. LED type: SMD3535

4. Cabinet material: iron/die-casting aluminum

5. Life span: >100,000 Hours

Product Specification

Item	KP4	KP5	KP8	KP10
Pixel pitch	4mm	5mm	8mm	10mm
Module size	320*160mm	320*160mm	320*160mm	320*160mm
Module resolution	80×40	64×32	40×20	32×16
Physical density	62500 dots/㎡	40000 dots/㎡	15625 dots/㎡	10000 dots/㎡
LED type	SMD1921	SMD1921	SMD3535	SMD3535
Cabinet size	960×960mm	960×960mm	960×960mm	960×960mm
Cabinet resolution	240×240	192×192	120×120	96×96
Cabinet material	Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum
Maintenance way	Rear	Rear	Rear	Rear
Best viewing distance	≥4m	≥5m	≥8m	≥10m
Best viewing angle	H: 140°; V:140°	H: 140°; V:140°	H: 140°; V:140°	H: 140°; V:140°
Driving method (Constant Current)	1/10Scan	1/8 Scan	1/5 Scan,	1/2 Scan
Video frame rate	≥60 Hz	≥60 Hz	≥60 Hz	≥60 Hz
Refresh rate	1920-3840Hz	1920-3840Hz	1920-3840Hz	1920-3840Hz
Brightness	≥5500nits	≥5500nits	≥6000nits	≥6000nits
Grey Level	12-16bit	12-16bit	12-16bit	12-16bit
Ingress protection	IP65	IP65	IP65	IP65
Life Time	>100,000 Hours	>100,000 Hours	>100,000 Hours	>100,000 Hours
The rate	<0.0002	<0.0002	<0.0002	<0.0002

Features of our Outdoor Fixed LED Display

1. High brightness & full color, clear and beautiful at outside.

2. Shape and size could be customized, satisfy various requests.

3. Low power consumption, long life span.

4. Our most competitive factory price, with guaranteed quality.

5. Strict quality control ability for full production process.

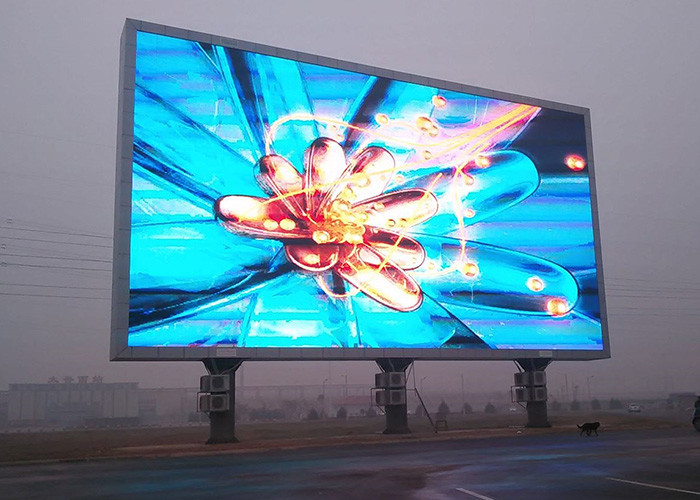

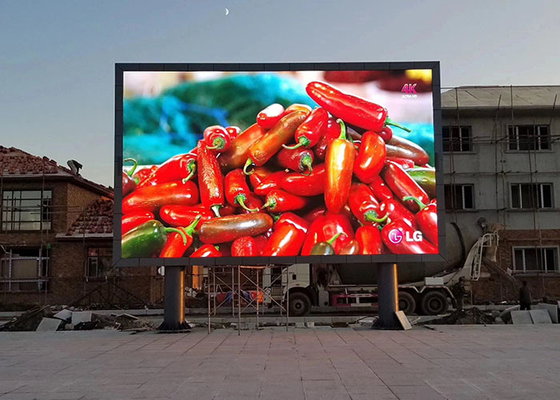

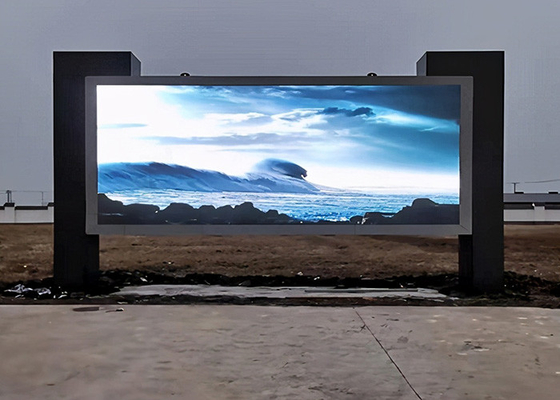

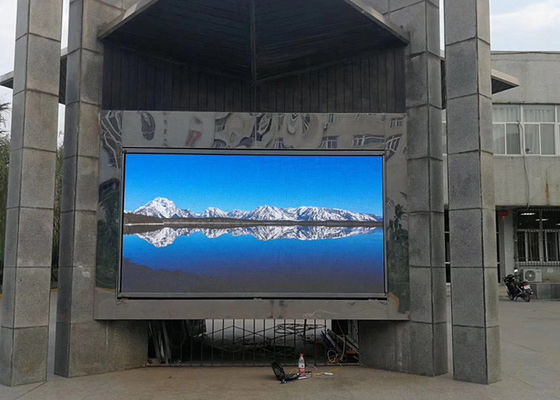

Applications of Outdoor Fixed LED Display

Outdoor Fixed LED display are used in various public places, you can find them everywhere, like highway, subway, shopping mall, hospital, stores, Sports stadium. most of them are used for advertising, signage, background.

P4 P5 P8 P10 Full Color Led Display Screen High Brightness 6000nits 0

After-sell Service:

1. 2 years quality guarantee.

2. providing free and spare accessories, such as power and data cables.

3. we will reponse you anytime in 7*24 houres if any question about the led screen.

4. Free technical training for how to use and handle the software.

5. Experienced engineers and technicians provide solutions to all kinds of question.

FAQ:

1. Is the product customizable?
Yes, we can customize the product according to customers' requirement.

2. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.

3. What trade terms do you support?
We usually do EXW, FOB, CIF, DDU, DDP terms.

4. I don't know how to do custom clearance and pay duty, what should I do?
We can offer DDP door to door service.
