| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P2.5 P3 P4 P5 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton/ wooden case/fight case for led soft ssreen |
| Delivery Time: | about 22 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 9000 square meters per month |
| Application: | Live Events Led Display,Indoor,stage Rental,concert | Life Span: | 100000hours |
|---|---|---|---|
| Color: | Full-color | Scan Mode: | 1/32S 1/20S 1/16S |
| Led Type: | SMD2020 | Module Size: | 320*160mm |
| Grey Level: | 12-16bit | Video Frame Rate: | >60Hz |
| The Rate: | <0.0002 | ||
| Highlight: | 320*160mm Indoor Full Color Led Display,SMD2020 Indoor Full Color Led Display,320*160mm Irregular Led Display |
||
Curved P4 P5 320*160mm Indoor Full Color Led Display Irregular Shape

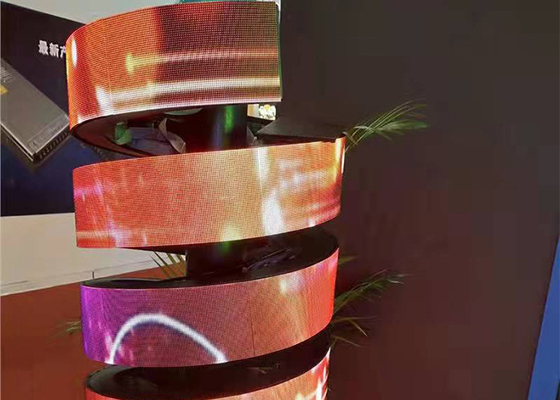

Indoor Round Curved Soft Led Screen P4 P5 320*160mm Irregular Shape Led Display
Quick details of soft led screen

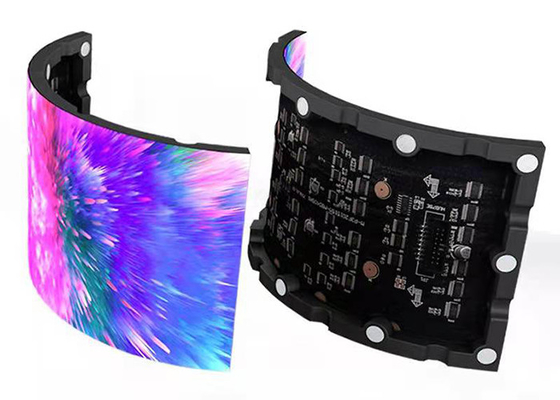

1. led flexible screen can be bent at will.
2. Ultra thin and light weigh, very suitable for hagging.
3. Save energy, lower consumption and long life.
4. Suit customize, can be spliced according to the needs of customers.
Specifications of soft led screen
| Item | P2.5 | P3 | P4 | P5 |
| Pixel pitch | 2.5mm | 3mm | 4mm | 5mm |
| Module size | 320*160mm | 240*120mm | 320*160mm | 320*160mm |
| Module size | 128*64 | 80*40 | 80*40 | 64*32 |
| Physical density | 160000 dots/㎡ | 111111 dots/㎡ | 62500 dots/㎡ | 40000 dots/㎡ |
| LED type | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Module power | 18w | 18w | 18w | 18w |
| Best viewing distance | ≥2.5m | ≥3m | ≥4m | ≥5m |
| Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
| Driving method (Constant Current) | 1/32 Scan | 1/20 Scan | 1/20 Scan | 1/16 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥800nits | ≥800nits | ≥800nits | ≥800nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP43 | IP43 | IP43 | IP43 |
| Max power consumption | ||||
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of soft led screen
1. Driving method:32s/20s/16s
2. Anti-interfrence:Has strong anti-static interference ability, which can effectively resist external high-frequency interference and ensure the clarity of the picture
3. Thinner design, not effect overall structure.
4. More durable +thin+high endurance
Application of soft led screen

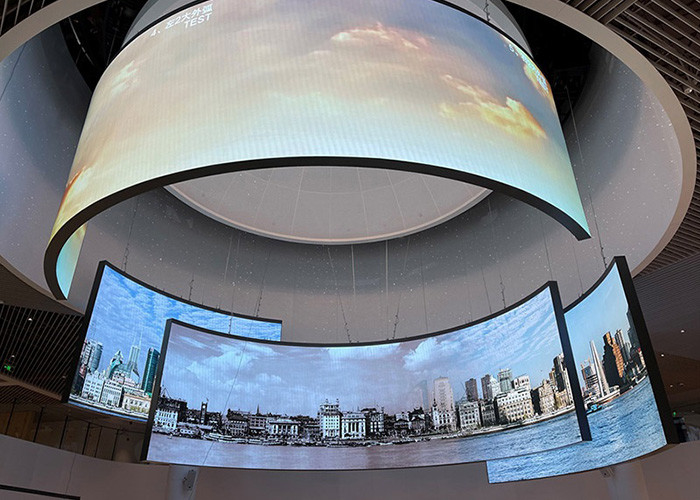

It can meet the requirements of personalized customization and is widely used in advertising, entertainment, security and other fields.
Why choose KAILITE?
1. We have 14 years exprience in led screen area. We are specialized in this area.
2. we put quality frist. Competitive price, at the same time, make sure the quality.
3. Quick response. we are online 24 hours, welcome to consult.
4. Same product , lower price. good quality.
After-sell Service:
1) All parts will be provided for 2 years warranty
2) We will provide free traing for led screen, Novices can also buy without worry.
3) Free remote control debuggine serice if you need
4) Services time:7*24hours
5) We assists with training and technical support for the customer in the factory.This service is free of charge
FAQ:
1. Can you provide a sample?
A:Sure, It is ok to send you a sample according to your requirements
2. How long is the warranty?
A:We offer 2 year warranty and liftime maintenance.
3: What is your payment term?
We support T/T.
4. How long will it take to receive the goods?
About 22-24 days.
5. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
