Place of Origin: | Shenzhen, China |
Brand Name: | KAILITE |
Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
Model Number: | P2.5 P3 P4 P5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | carton/ wooden case/fight case |
Delivery Time: | about 22 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Western Union |
Supply Ability: | 9000 square meters per month |
Usage: | Indoor Exhibition, Shopping Mall | Warranty: | 2 Years |
---|---|---|---|
Module Size: | 320*160mm | Life Span: | 100000hours |
Color: | 1R1G1B | Led Type: | SMD2020 |
Refresh Rate: | 1920Hz-3840Hz | Module Resolution: | 128*64 80*40 64*32 |
Highlight: | 1R1G1B Flexible Led Screen Panel,SMD2020 Cylindrical Led Display,1R1G1B Full Color Led Screen |
1R1G1B Flexible Led Screen Panel P3 P4 P5 HD Cylindrical Led Display
Indoor full color Flexible Led Panel for ad P3 P4 P5 HD Cylindrical Led Display
Description of flexible led panel
flexible led has high flexibility. It is specialized design for special architecture. It can be better meet the diverse shape wall and needs.
Specifications of flexible led panel
Item | P2.5 | P3 | P4 |
Pixel pitch | 2.5mm | 3mm | 4mm |
Module size | 320*160mm | 240*120mm | 320*160mm |
Module size | 128*64 | 80*40 | 80*40 |
Physical density | 160000 dots/㎡ | 111111 dots/㎡ | 62500 dots/㎡ |
LED type | SMD2020 | SMD2020 | SMD2020 |
Module power | 18w | 18w | 18w |
Best viewing distance | ≥2.5m | ≥3m | ≥4m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/32 Scan | 1/20 Scan | 1/20 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 |
Features of soft led module
1) High flexibility. Flex for any irregular shaped screens.
2) Ultra light definition with more than 3840Hz.
3) Adopt more energy saving led lamp to better protecting environment.
4) High and adjustable bright can meet the demands of the chaging requirment of customer in different environments.
Application of soft led module

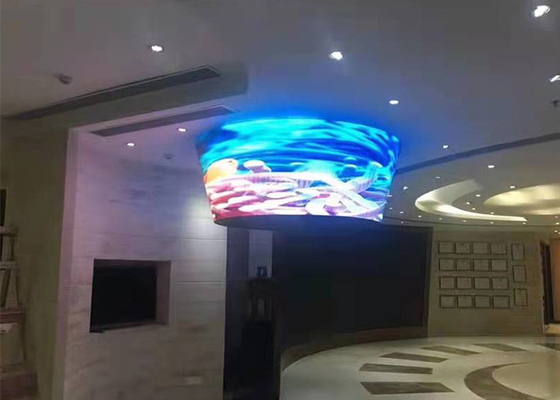

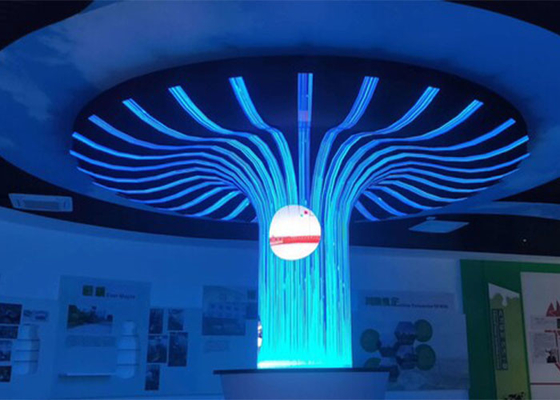

This modules has high flexibility. Not limited by direction, size and building shape. Soft led screen is widely used in shopping mall, musueum, college and medical treatment.
Why choose KAILITE?
1. We have 14 years exprience in led screen area. We specialist in this area.
2. 9000 square meters of monthly production capability. lead time is guaranteed.
We could show you our factory via video call if you are interested.
3. Quality is guaranteed, Thanks to our strictly quality control process.
4. Same product , lower price and ensure high quality.
Our Service:
1) 2 years quality guarantee period for all parts. If there any product problems during the period, please send them for repair.
2) providing free frame structure drawing, as well as power and data cables wiring diagram.
easy for your to set up the led screen.
3) debug software in advance. we can also though video to teach you to debug the system.
4) Sales and technical team standing by for you at 7×24 hours.
FAQ:
1. A sample is available?
Sure, free feel to contact us!
2.What is your minimum order quantity?
2 square meters
3. How can we guarantee quality?
2 years warranty and start to end, in time after service.
4. What's the lead time for mass order?
Normally, it takes about 20-35 days, depends on the order quantity
