Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS UL FCC CCC ISO9001 |
Model Number: | P2.5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case or flight case |
Delivery Time: | 22-24 days on average |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
Supply Ability: | 8000 square meters per month |
Product Name: | Super Quality P2.5 Indoor Led Video Walls | Screen Dimension: | Customized |
---|---|---|---|
Pixel Density: | 160000 Dots/㎡ | Application: | Live Events, Conference, Show, Concert, Ads |
Life Span: | 100000 Hours | Warranty: | 2 Years |
Highlight: | P2.5mm Indoor Full Color Led Display,160000 dots Indoor Full Color Led Display,SMD2020 Indoor Led Video Walls |
P2 P2.5 Indoor Full Color Led Display Seamless Splicing Video Walls
Super Quality P2 P2.5 Indoor Led Video Walls Factory Supply Seamless Splicing
Quick details of Indoor Led Video Walls
1, Pixel Pitch: 2.5mm
2, LED Lamp: SMD2020
3, Cabinet size: 640*480mm
4, Best viewing angle: H: 160°; V:160°
5,Cabinet material: Iron or die-casting aluminum.
Specification of products
Item | P2 | P2.5 |
Pixel pitch | 2mm | 2.5mm |
Module size | 320*160mm | 320*160mm |
Module resolution | 160×80 | 128×64 |
Physical density | 250000 dots/㎡ | 160000 dots/㎡ |
LED type | SMD1515 | SMD2020 |
Cabinet size | 640*480*59mm | 640*480*59mm |
Cabinet resolution | 320*240 | 256*192 |
Maintenance way | Front | Front |
Best viewing distance | ≥2.5m | ≥2.9m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/40 Scan | 1/32 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 |
Features of Indoor Led Video Walls
1. High definition, high refresh rate(1920-3840Hz), full color, the screen looks beautiful and colorful
2. Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output
3. Front maintenance way, easy to replace module and repair components
4. Low defective rate(<0.0002) of lamps, long life time(>100,000 Hours)
Applications Of Indoor Led Video Walls
The products are widely used for wedding, square, concert, sporting event, festival, conference, grand theater, large song and dance party, fashion show.

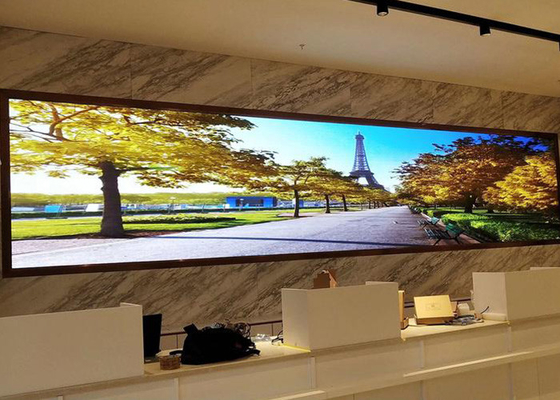

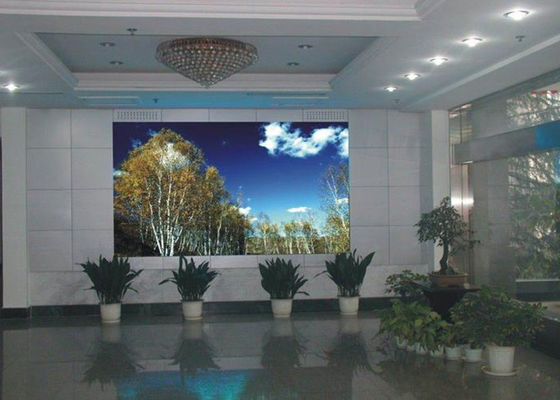

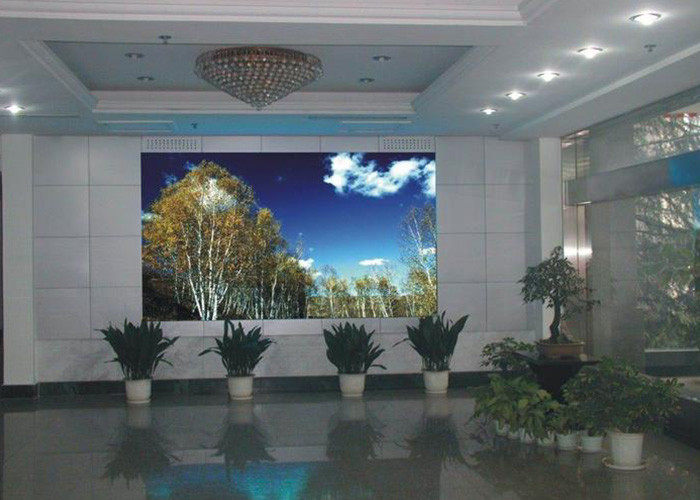

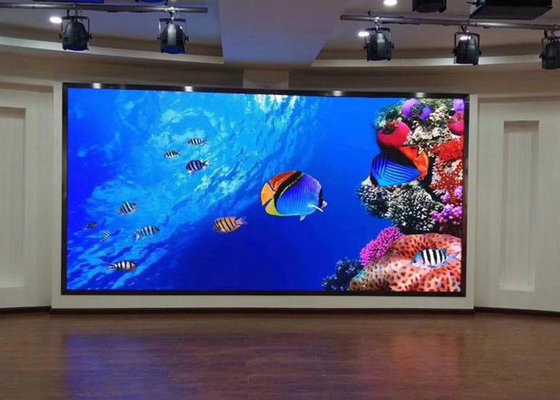

Cases
Advantages:
1. Use good material of all parts, don't need to worry about the quality.
2. Seamless Splicing picture.
3. Strict quality control ability for full production process.
4. Factory supply, best price and convenient to custom made.
5. Our company focus on LED screen production for 14 years, we have professional engineers and sales team.
After-sell service:
1) 2 years quality guarantee period for all parts.
2) Providing free accessories, such as power and data cables wiring diagram.
3) Online service of professional staff.
4) Providing customer with the loading program, so they can use as soon as they install the led screen,don't need to debug again.
5) Warranty service.
FAQ:
1. Is the product customizable?
Yes, we can customize the product according to customers' demand, you just need to provide the details.
2. Can your factory accept OEM or ODM?
Yes,We can accept OEM and ODM,.and can print logo.
3. How can I make sure you are a manufacturer?
You can search on the internet or have a video call with our staff, even a visit to our factory is welcomed if you are in Shenzhen.
4. Could I have a sample before place mass order?
Yes of course, sample is available as you wish.
5. What is the delivery time?
About 22-24 days after we receiving the deposit.
