Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 UL FCC CCC |
Model Number: | P5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
Supply Ability: | 8000 square meters per month |
Product Name: | P5 Curved LED Panels | Pixel Pitch: | 5mm |
---|---|---|---|
Cabinet Size: | Customized Size | Screen Dimension: | Customized Size |
Front Maintenance: | Front | Best Viewing Distance: | ≥5m |
Life Span: | Over 100000 Hours | Warranty: | 2 Years |
Highlight: | 800nits Front Maintenance LED Screen,3840Hz Front Maintenance LED Screen,800nits Curved LED Panels |
800nits Front Maintenance LED Screen Curved LED Panels For Conference
Big Front Maintenance P2.5 P3 P4 P5 Curved LED Panels for Conference
Quick details of P5 Curved LED Panels
1. Module size: 320*160mm
2. Brigtness: ≥800nits
3. Physical density: 40000 dots/㎡
4. Input voltage: AC110v-220v±10%
5. Refresh rate: 1920-3840Hz
Product Specification:
Item | KP4 | KP5 |
Pixel pitch | 4mm | 5mm |
Module size | 320*160mm | 320*160mm |
Module size | 80*40 | 64*32 |
Physical density | 62500 dots/㎡ | 40000 dots/㎡ |
LED type | SMD2020 | SMD2020 |
Module power | 18w | 18w |
Best viewing distance | ≥4m | ≥5m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/20 Scan | 1/16 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 |
Features of Curved LED Panels
1. Custom made, changable size and shape adapt to various situation.
2. High refresh rate(1920-3840 Hz).
3. Strict QC test during all production process.
4. Front maintenance way, easy to replace and repair the module and power supply.
5. Our most competitive factory price, with guaranteed quality.

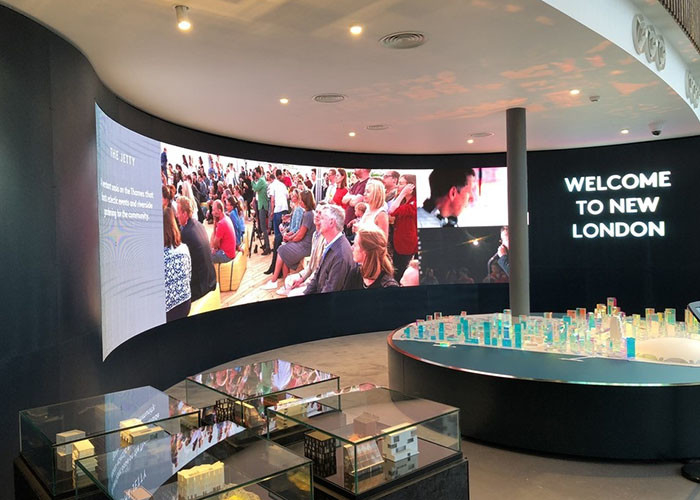

Applications of Curved LED Panels
Customized shape and size allow different design of the screen, and they can be used at most kind of places and conditions. Especially suit for conference, shopping mall center, stores, exhibitions, subway, train station etc.
After-sell service:
1. 2 years quality guarantee period.
2. Failure maintenance of LED panels.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4. Online service if you have any question about the led screen.
5. Free technical training for how to handle the software.
FAQ:
1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. Could I get a sample before place mass order?
Yes sure, sample is available for your check.
3. How about your delivery time?
Generally, it will takes about 22-24 days after receiving your advance payment.
4. Can you accept OEM/ODM?
Yes, we can and print logo for free.
5. What is your terms delivery?
EXW, FOB, CIF, DDP, DDU...
