| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P4,P5, P8, P10 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 22-24 days |
| Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
| Supply Ability: | 8000 square meters per month |
| Highlight: | SMD3535 LED Commercial Advertising Display Screen,1R1G1B LED Commercial Advertising Display Screen,SMD3535 Outdoor Display Board |
||
|---|---|---|---|
SMD3535 LED Commercial Advertising Display Screen High Refresh Rate
Led Commercial Ad Screen P8 P10 SMD3535 High Refresh Rate Outdoor Display Board
Description of 960*960mm series of outdoor fixed led screen
Outdoor fixed led billboard is a kind of high brightness led screen used for outdoor advertising display. It adopts advanced Led packing technology and high-precision assembly tecnology, and has the characteristics of good waterproof, earthquake resistance, high temperature resistance, low temperature and beautiful appearance.
Specifications of 960*960mm series of outdoor fixed led screens
| Item | P8 | P10 |
| Pixel pitch | 8mm | 10mm |
| Module size | 320*160mm | 320*160mm |
| Module resolution | 40×20 | 32×16 |
| Physical density | 15625 dots/㎡ | 10000 dots/㎡ |
| LED type | SMD3535 | SMD3535 |
| Cabinet size | 960×960×mm | 960×960×mm |
| Cabinet resolution | 120×120 | 96×96 |
| Cabinet weight | 25kg | 25kg |
| Cabinet material | Die casting aluminum | Die casting aluminum |
| Maintenance way | Rear | Rear |
| Best viewing distance | ≥8m | ≥10m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/5 Scan, | 1/2 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥6000nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 |
| Max power consumption | 0.85kw | 0.85kw |
| Life Time | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 |
Features of 960*960mm series outdoor fixed led display
1) Cabinet size:960*960*108mm
2) High brightness more than 6000nits, even can be seen under the strong sunlights
3) Video frame rate:65Hz
4) 100% waterproof, It can be work in extrem rainy days.
5) Suitabale high and low temperature, led screen could be working in -30℃-60℃.

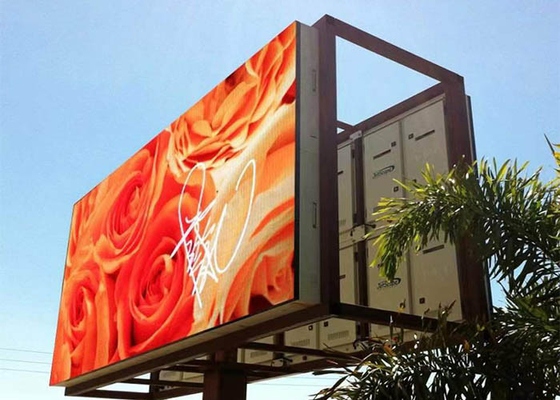

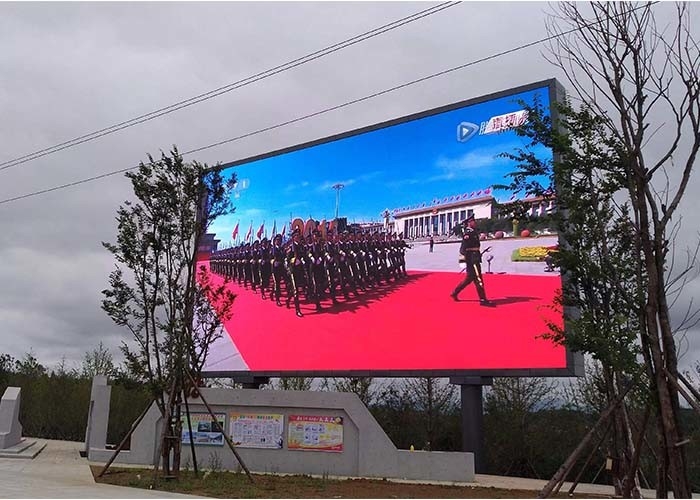

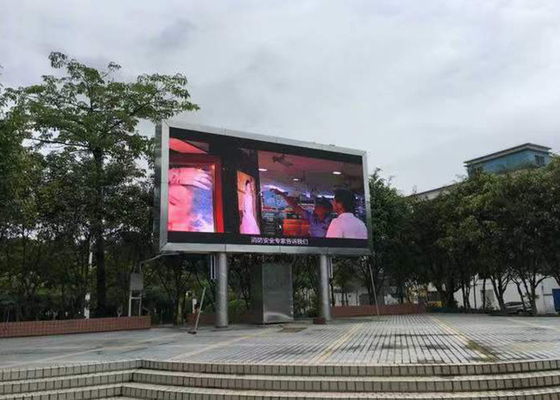

Product pictures
Application of 960*960mm series outdoor fixed led screen
Outdoor fixed LED display can be used in different outdoor area, such as at stage, bank, mall, hall, stadium, airport and waiting room and exhibition. It can suitable for outdoor areas,even high bringhtness or heavy rainy days.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. With 40 Japanese Panasonic and YAMAHA high-speed chips mounters, 24 hours Dust-free working plant.
3. Good service. we support ODM/OEM service.
4. competitive price.We are the original manufacturer, no middleman, more saving money.
After-sell Service:
1) All parts are guaranteed for two years.
2) Any question, any time, we will be stand here for you by 7*24 hours.
3) Installation guid manual of the led screen will be provide for you. No need to worry about assembling the led screen.
4) Free technical training for how to use and handle the software.
FAQ:
1.Q: can i visit your factory online?
A:Yes, sure!
2.Q: How long is the warranty?
A: We offer 2 year warranty.
3. How can we guarantee quality?
Always product a pre-production sample before mass production and do finalinspection before shipment for every order.
4. what certifiates do you have?
we have IOS9001 , IOS2000,FCC,RoHS,CE,CCC.
