| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P4,P5, P8, P10 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Wooden case for outdoor advertising led screen |
| Delivery Time: | 22-24 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000 square meters per month |
| Display Function: | Outdoor Advertising, Billboard, Exhibition | Brightness: | 6000nits |
|---|---|---|---|
| Warranty: | 2 Years | The Rate: | <0.0002 |
| Module Size: | 320mm*160mm | Led Chip: | SMD3535 |
| Name: | P8 P10 Billboard | Cabinet Material: | Iron |
| Tube Chip Color: | Full Color | Working Voltage: | 5V 60A |
| Highlight: | 6000nits Outdoor Full Color Led Display,Temperature Resistance Outdoor Full Color Led Display,SMD3535 LED Wall Screen |
||
P8 P10 High Brihtness 6000nits Outdoor Full Color Led Display Wall Screen
P8 P10 High brihtness 6000nits Led Wall Screen Display Outdoor
Quick Details of Led Wall Screen Display Outdoor
1) Every module were sprayed with comformal coating. With characteristic of waterproof,moistureproof and dustproof.
2) brightness can be ajustable in different enviroments, more suitable different environments. It can present better video.
3) High temperature and low temperature resistance,Led billboard could be working in -30℃~60℃.
4) Ultra-wide angle of view.
Specifications of Led Wall Screen Display Outdoor
| Item | P8 | P10 |
| Pixel pitch | 8mm | 10mm |
| Module size | 320*160mm | 320*160mm |
| Module resolution | 40×20 | 32×16 |
| Physical density | 15625 dots/㎡ | 10000 dots/㎡ |
| LED type | SMD3535 | SMD3535 |
| Cabinet size | 960×960×mm | 960×960×mm |
| Cabinet resolution | 120×120 | 96×96 |
| Cabinet material | Die casting aluminum | Die casting aluminum |
| Maintenance way | Rear | Rear |
| Best viewing distance | ≥8m | ≥10m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/5 Scan, | 1/2 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥6000nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 |
| Life Time | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 |
Features of Led Wall Screen Display Outdoor
1) Full waterproof design, it can work nomally in bad weather.
2) high contast, can present more vivid images and videos.
3) Save space, led wall display can be implant in the wall.
4) High refresh rate,more than 3840Hz.
Application of Led Wall Screen Display Outdoor

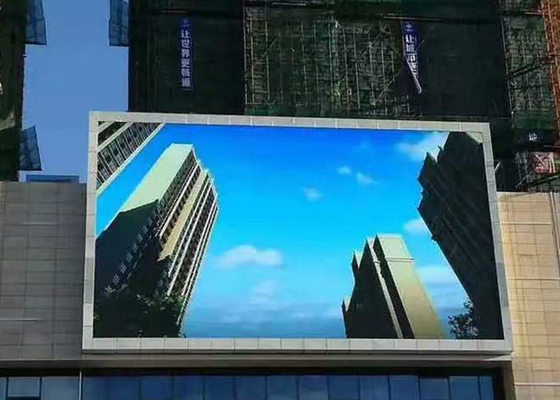

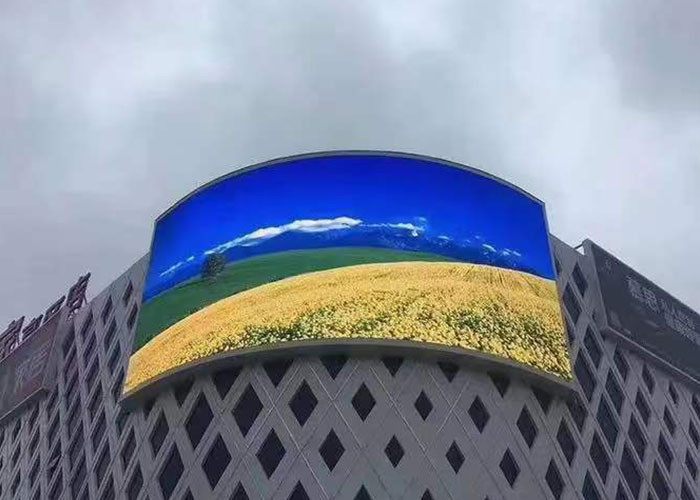

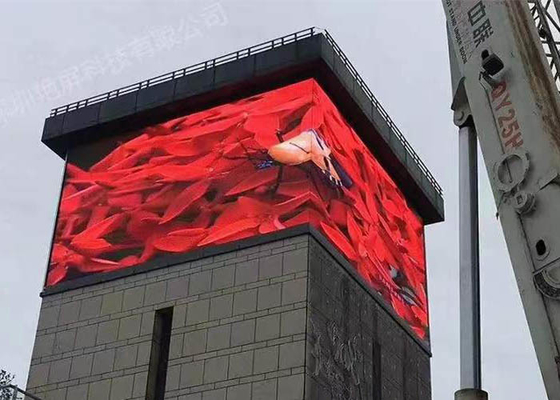

Mainly used in outdoor advertising media, government and enterprise engineering, cultural tourism, sports venues, image publicity, commercial real estate and other fields.
Why choose KAILITE?
1. We have rich experience in led screen industry more than fourteen years.
2. Our QC will do quality test first, and salesman will do the final inspect.
3. We are factory, we have strong productivity, more than 9000 sqm every month.
4. More professional. We have 14 years experience, we can give you more professional advice.
Our Service:
1) A two-year warranty
2) Quickly respond, we will handle with your problem on time.
3) Free remote control debuggine serice if you need
4) We support ODM/OEM service for you.
FAQ:
1. I want to print a logo on my products, It is ok?
A:Sure, we will provide this services free for you.
2. How many workers are there in you factory?
A: about 100 people.
3: Can you provide installation guide services for me?
yes, sure! we are very glad to help you.
4. Could you introduce a freight forwarder to me?
Yes. We have a long relationship with freight forwarder, the competiutive price will be provide for you.
