Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 UL FCC CCC |
Model Number: | P4 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
Supply Ability: | 8000 square meters per month |
Product Name: | P4 Indoor LED Wall Screen | Cabinet Size: | 640*480mm |
---|---|---|---|
Screen Dimension: | Customized | Usage: | Indoor |
Grey Level: | 12-16bit | Input Voltage: | AC 111-220v±10% |
Application: | Live Events Led Display | Defective Rate: | <0.0002 |
Highlight: | RGB Indoor Full Color Led Display,RGB Indoor Led Screen Wall,Live Events Indoor LED Wall Screen |
RGB Indoor Full Color Led Display Wall Screen For Signage Background
RGB P2 P2.5 P3.07 P4 Indoor LED Wall Screen for Signage Background
Quick Details of P4 Indoor LED Wall Screen
1. Pixel pitch: 4mm
2. Cabinet material: Die-casting aluminum
3. Physical density: 62500 dots/㎡
4. Refresh rate(1920-3840Hz)
5. Driving method: 1/20 Scan Constant Current
Specification of Indoor LED Wall Screen
Item | Parameter | ||||
Module specifications | Mode | P2 | P2.5 | P3.076 | P4 |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | |
Module resolution | 160×80 | 128×64 | 104×52 | 80×40 | |
scan method | 1/40 Scan | 1/32 Scan | 1/26 Scan, | 1/20 Scan | |
Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
LEDs | SMD1515 | SMD2020 | SMD2020 | SMD2020 | |
Main Specifications | Cabinet size | 640*480mm | 640*480mm | 640*480mm | 640*480mm |
Cabinet pixel | 320*240 | 256*192 | 208*156 | 160*120 | |
Density (dot/m2) | 250000 | 160000 | 105688 | 62500 | |
Brightness(cd/m2) | ≥800 | ≥800 | ≥800 | ≥800 | |
Cabinet material | Die-casting aluminum | ||||
IP grade | IP43 | ||||
Gray level | 12-16 bit | ||||
Refresh rate | 1920-3840HZ | ||||
Best viewing distance | 2.5M | 2.9M | 3M | 4M | |
Input voltage | AC110-220V±10% | ||||
Working temperature | -30℃-60℃ |
Features of Indoor LED Wall Screen
1. Seamless splicing, full color, pictures look beautiful and beautiful.
2. Low power consumption.
3. Custom made size, flexible application.
4. Our goods have passed CE-LVD, CE-EMC, FCC, RoHS, ISO, 3C certification.
5. Wide viewing angle(H: 160°; V:160° )

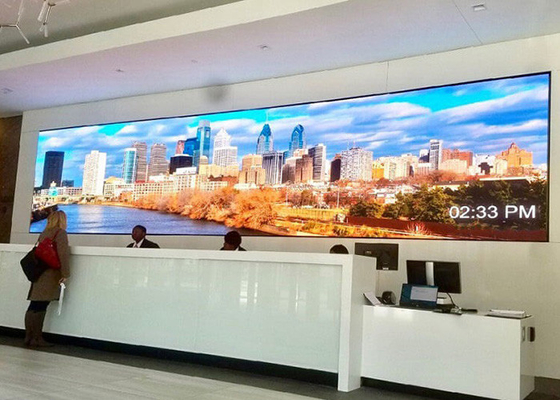

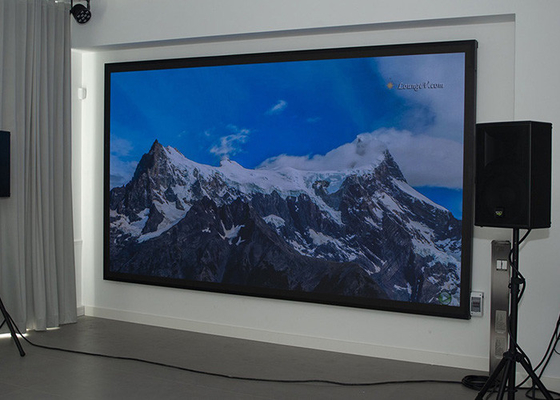

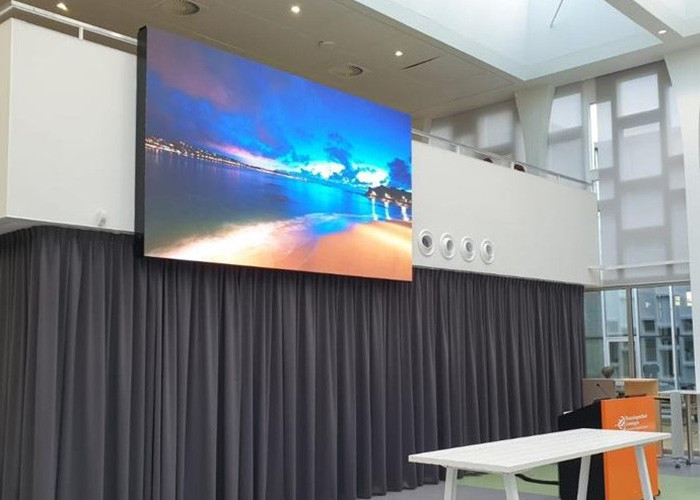

Application of Indoor LED Wall Screen
With the characteristic of seamless splicing and colorful picutre display, widely used in indoor events, for example, signage, control room, church, concert, exhibition, sports live.
Quality Control Test (for the whole screen and all modules)
After-sell service:
1. 24-hour hotline service, including counseling and technical guidance.
2. Failure maintenance of LED panels.
3. Guidance of installation by professional and experienced engineers and staff.
4. Free remote control debuggine serice if you need.
FAQ:
1. Are you a manufacturer or trading company?
We are a Professional OEM/ODM manufacturer which has specialized in led display industry for 14 years.
2. How does your factory do regarding quality control?
Quality is factory's soul. We will test all parts before shipment.
3. How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What trade terms do you support?
We usually do EXW, FOB, CIF, DDU, DDP terms.
5. Do you provide any free spare parts in each order?
Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
