Place of Origin: | Shenzhen, China |
Brand Name: | KAILITE |
Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
Model Number: | P2 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiatable |
Packaging Details: | carton/ wooden case/fight case |
Delivery Time: | about 22 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 9000 square meters per month |
Average Power Consumption: | 180w | Pixels: | 2mm |
---|---|---|---|
Usage: | Video Wall | Module Size: | 320x160mm |
Life Span: | 100000 Hours | Color: | Full Color |
Led Type: | SMD1515 | Refresh Rate: | 1920Hz-3840Hz |
Highlight: | Flexible Indoor Full Color Led Display,SMD1515 Indoor Full Color Led Display,Flexible Led Display Soft Module |
Flexible Indoor Full Color Led Display Soft Module Advertising Tunnel
Full Color Soft Module Led Screen P2 Flexible Video Wall Led Tunnel for Advertising
Description of soft led screen
The LED flexible screen can be bent, rotated, folded and other forms according to requirements, so as to achieve colorful performance effects. LED flexible screen usually adopts high-density SMD LED technology, which has the advantages of high brightness, high contrast, high resolution, low energy consumption, long life, good waterproof, shockproof and compression resistance.
Specifications of soft led module
Item | P2 | P3 |
Pixel pitch | 2 | 3mm |
Module size | 320*160mm | 240*120mm |
Module size | 160*80 | 80*40 |
Physical density | 250000 dots/㎡ | 111111 dots/㎡ |
LED type | SMD1515 | SMD2020 |
Module power | 18w | 18w |
Best viewing distance | ≥2.5m | ≥3m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/40 Scan | 1/20 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 |
Features of soft led screen
1. Excellent flexible. It can be suitable different shape
2. Lower consumption, average power consumption only 180W. more friendly to enviroment.
3. easy and fast installation, every modules with magnet.
4. easy maintenance, If there is something wrong with the led module, all you need to do is take it down with a magnetic attraction tool, which only takes a few seconds.

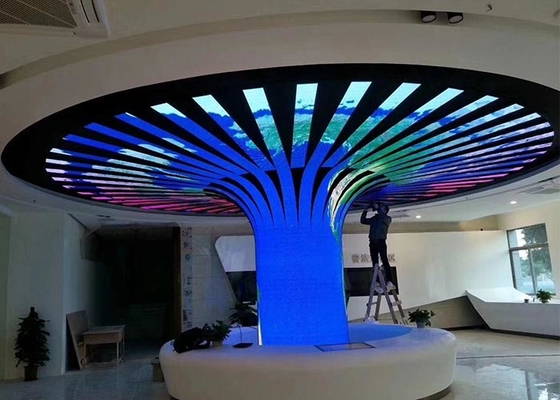

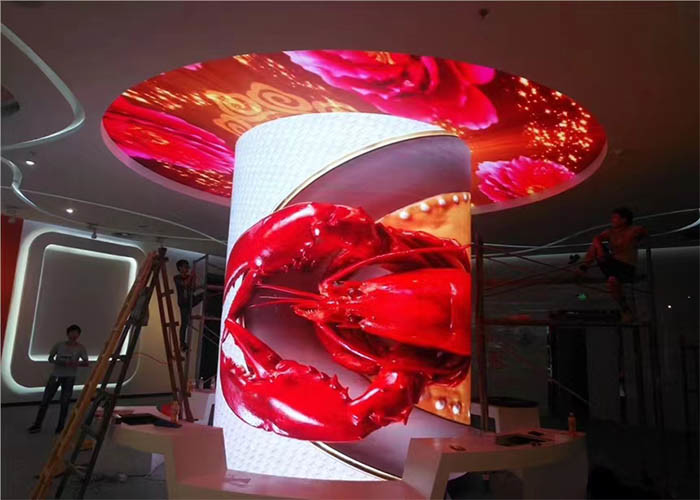

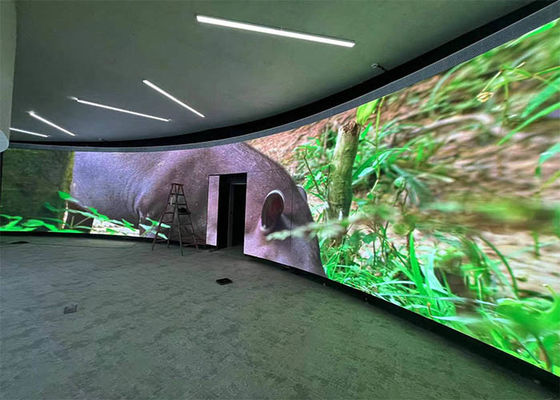

Application of soft led screen
It can be widely used in indoor and outdoor occasions.such as exhibitions, concerts, speeches, advertisements, sports events, etc., and has achieved good visual effects and advertising effects.
Why choose KAILITE?
1. We are a factory specialized in the production of led dispaly and have 14 years experience.
2. We are factory with strong productive forces. It can be reached 9000 square meters per month.
3. Fast responsed, we will responsed you at first time.
4. we are factory, we can provide the most competitive price will be provide for you.
Our Services
1) 2 years quality guarantee period for all parts. If there any product problems during the period, please send them for repair.
2) providing free frame structure drawing, as well as power and data cables wiring diagram. easy for your to set up the led screen.
3) debug software in advance. we can also though video to teach you to debug the system.
4) Sales and technical team standing by for you at 7×24 hours.
FAQ:
1. What is the size of your factory?
We have 10000m2/sqm working plant with 2000m2/sqm office area.
2. How long is the warranty?
2 years.
3: What is your post-sale service?
we provide 2 years warranty for your order, and provide free guide service for you.
4.How can we guarantee quality?
Always product a pre-production sample before mass production and do finalinspection before shipment for every order.
