Place of Origin: | Shenzhen, China |
Brand Name: | KAILITE |
Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
Model Number: | P2.5 P3 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiatable |
Packaging Details: | carton/ wooden case/fight case for curved led screen |
Delivery Time: | about 22 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 9000 square meters per month |
Features: | Save Energy | Pixel Pitch: | 2.5mm 3mm |
---|---|---|---|
Module Size: | 320*160mm | LED Type: | SMD2020 |
Module Power: | 18W | Ingress Protection: | IP43 |
Warranty: | 2 Years | Brightness: | 800nits |
Highlight: | Curved Soft Led Panel,320*160mm Soft Led Panel,Curved Flexible Led Screen |

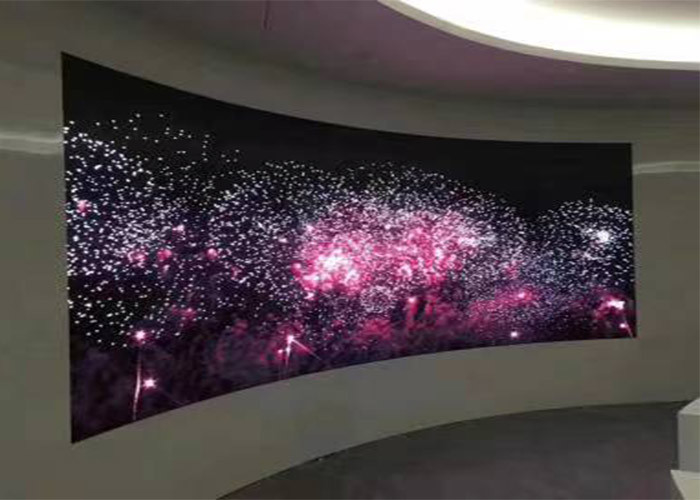

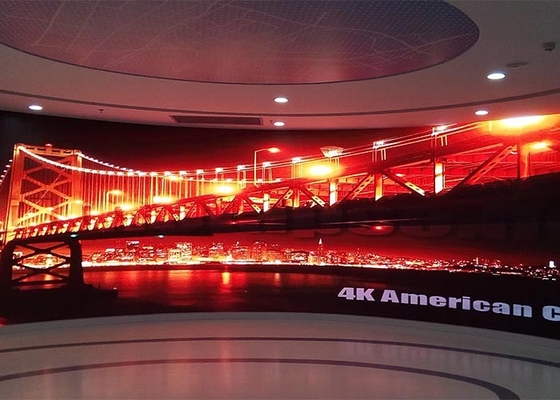

HD P2.5 320*160mm Soft Led Panel Multi Color Curved Flexible Led Screen
HD P2.5 320*160mm Soft Led Panel Indoor Multi Color Curved Flexible Led Screen
Quick Details of soft led module
1) High flexibility. Flex for any irregular shaped screens.
2) High brightness: adopts high-density LED beads, which can produce high-brightness images, and can keep clear images even under strong light, making them look clearer.
3) Energy saving and environmental protection: LED flexible screen adopts advanced LED technology, which can convert electric energy into light energy, save energy, and produce no harmful substances, which is environmentally friendly.
4) Safety: designed with low voltage, which can ensure safety, avoid the danger of electric shock and ensure the safety of operators.
Specifications of soft led module
Item | P2.5 | P3 |
Pixel pitch | 2.5mm | 3mm |
Module size | 320*160mm | 240*120mm |
Module size | 128*64 | 80*40 |
Physical density | 160000 dots/㎡ | 111111 dots/㎡ |
LED type | SMD2020 | SMD2020 |
Module power | 18w | 18w |
Best viewing distance | ≥2.5m | ≥3m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/32 Scan | 1/20 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 |
Features of soft led module
1. Slim and Lightweight and Quiet
2. Anti-interfrence:Has strong anti-static interference ability, which can effectively resist external high-frequency interference and ensure the clarity of the picture
3. For any convex, concave, or twisted installations, Customized pixel pitches available for variable installations.
4. More durable +thin+high endurance
Application of soft led module
It can meet the requirements of personalized customization and is widely used in advertising, entertainment, security and other fields.
Why choose KAILITE?
1. Realiable quality, We have 14 years experience in this area.
2. we put quality frist. Competitive price, at the same time, make sure the quality.
3. We support OEM/ODM service.
4. Same product , lower price. good quality.
After-sell Service:
1) All parts will be provided for 2 years warranty
2) We will provide free traing for led screen if you need.
3) Free remote control debuggine serice if you need
4) Services time:7*24hours
5) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
FAQ:
1. Can i have a sample order?
Yes, we welcome sample order to test and check quality. Both for LED moduel or a whole screen.
2. How long is the warranty?
A:We offer 2 year warranty and liftime maintenance.
3: Can I visit the factory?
Yes, please contact us in advance so we can arrange it.
4. Can your side support technical training?
Yes, we offer whole life technical training if customer needed in many ways like video calls, computer control, video shows, etc.
5. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
