Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 UL FCC CCC |
Model Number: | P3 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
Supply Ability: | 8000 square meters per month |
Product Name: | HD P3 LED Flexible Display | Pixel Pitch: | 3mm |
---|---|---|---|
Module Size: | 240*120mm | Module Power: | 18w |
Refresh Rate: | 1920-3840Hz | Best Viewing Angle: | H: 160°; V:160° |
Highlight: | Flexible Curved RGB LED Screen,Customized LED Flexible Display,RGB Curved LED Screen |
Customized HD P3 Flexible Curved RGB LED Screen Low Consumption Design
Factory Supply HD P3 LED Flexible Display Curved Design Low Consumption
Quick Details of P3 LED Flexible Display
1. Screen dimension: Customized
2. Physical density: 111111 dots/㎡
3. Video frame rate: ≥60 Hz
4. Life Time: >100,000 Hours
5. Input voltage: AC 110-220v±10%
Product Parameters(P2.5 P3 P4 P5)
Item | P2.5 | P3 | P4 | P5 |
Pixel pitch | 2.5mm | 3mm | 4mm | 5mm |
Module size | 320*160mm | 240*120mm | 320*160mm | 320*160mm |
Module size | 128*64 | 80*40 | 80*40 | 64*32 |
Physical density | 160000 dots/㎡ | 111111 dots/㎡ | 62500 dots/㎡ | 40000 dots/㎡ |
LED type | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
Module power | 18w | 18w | 18w | 18w |
Best viewing distance | ≥2.5m | ≥3m | ≥4m | ≥5m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/32 Scan | 1/20 Scan | 1/20 Scan | 1/16 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Why choose our products:
1. Shape & size could be customized, adapt to various application scenarios and designs.
2. Small pixel pitch, no full-screen display of patchwork fine point.
3. Low power consumption.
4. Competitive factory price.
5. 14 years experience in LED screen area.

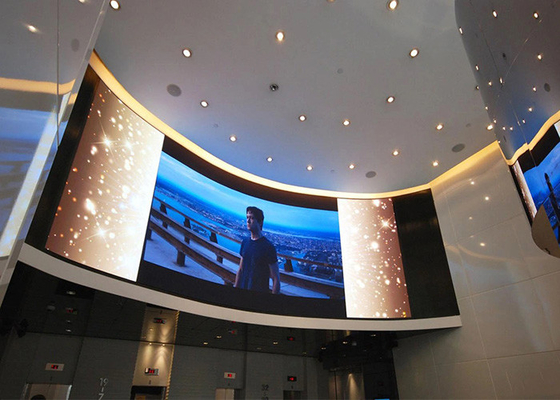

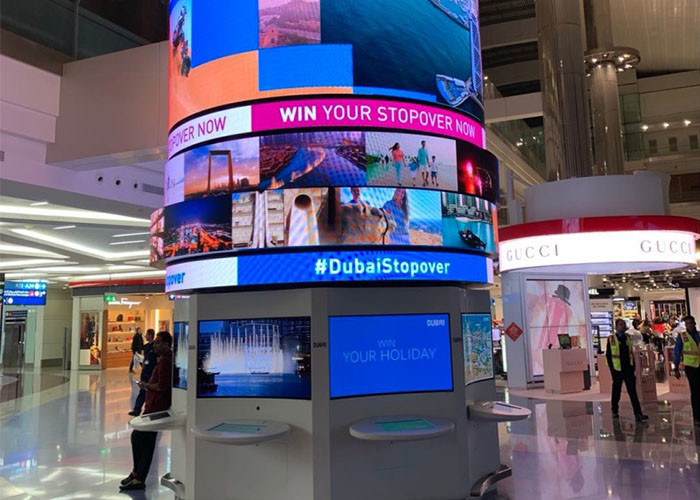

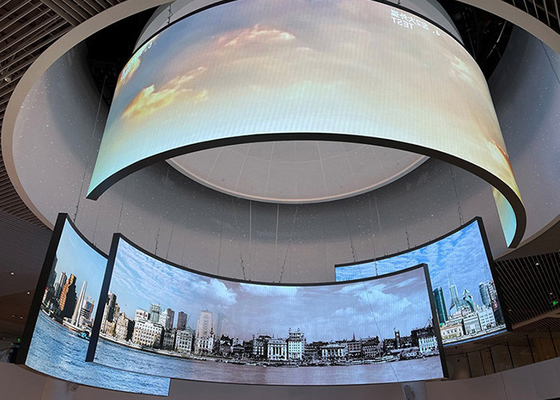

Applications of LED Flexible Display
· Business organizations
Supermarket, large-scale shopping malls, star -rated hotel, travel agencies
· Financial organizations
Bank, insurance companies, post offices, hospital, schools
· Public place
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room
· Entertainments
Movie theaters, clubs, stages
After-sell Service:
1. On-line service.
2. Free professional technical training.
3. Failure maintenance of LED panels.
4. 2 years warranty service.
5. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
FAQ:
1. Is the product customizable?
Customized design is available,OEM & ODM are welcomed.
2. Is it okay to print my logo on your product?
Yes that's okay for us, we provide free printing service.
3. How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. How does your factory do regarding quality control?
We have QC tests at all production processes, and test all parts and the whole screen before delivery.
5. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
