Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 UL FCC CCC |
Model Number: | P5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
Supply Ability: | 8000 square meters per month |
Product Name: | P5 LED High Brightness Displays | Refresh Rate: | 1920-3840Hz |
---|---|---|---|
Cabinet Size: | 960*960mm | LED Type: | SMD1921 |
Color: | Full Color | Input Voltage: | AC 110-220v±10% |
Highlight: | High Brightness LED Advertising Display,SMD1921 LED Advertising Display,1920Hz High Brightness LED Display |
1920Hz-3840Hz High Brightness LED Advertising Display For Outside
1920-3840Hz P4 P5 P8 Advertising LED High Brightness Displays For Outside
Quick details of P5 LED High Brightness Displays
1. Physical density: 40000 dots/㎡
2. Best viewing angle: H: 140°; V:140°
3. Driving method: 1/8Scan,Constant Current
4. Life Time: >100,000 Hours
5. Defective rate: <0.0002
Product Specification(P4 P5 P8 P10)
Item | P4 | P5 | P8 | P10 |
Pixel pitch | 4mm | 5mm | 8mm | 10mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 80×40 | 64×32 | 40×20 | 32×16 |
Physical density | 62500 dots/㎡ | 40000 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
LED type | SMD1921 | SMD1921 | SMD3535 | SMD3535 |
Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm | 960×960×mm |
Cabinet resolution | 240×240 | 192×192 | 120×120 | 96×96 |
Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
Maintenance way | Rear | Rear | Rear | Rear |
Best viewing distance | ≥4m | ≥5m | ≥8m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/10Scan | 1/8 Scan | 1/5 Scan, | 1/2 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥5500nits | ≥5500nits | ≥6000nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP65 | IP65 | IP65 | IP65 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of Outdoor LED High Brightness Displays
1. High refresh rate(1920-3840Hz).
2. Low power consumption.
3. Custom made according to clients' demand.
4. High bightness(≥5500nits), keep clear under the sunlight.
5. Waterproof design, adapt to outdoor environment.

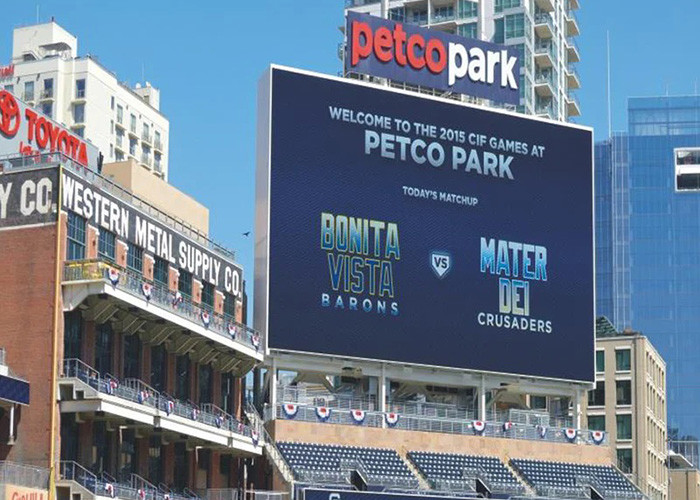

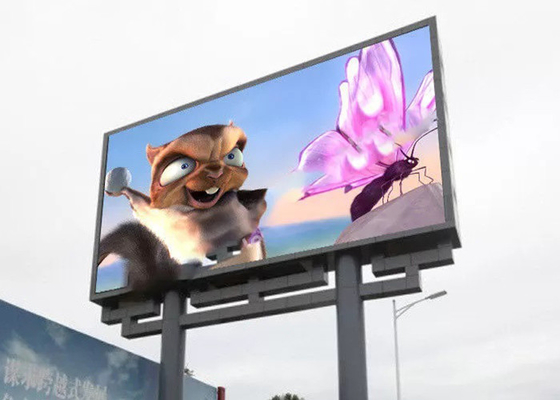

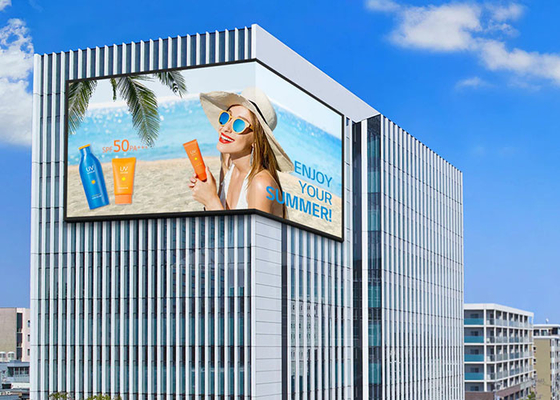

Applications of Outdoor LED High Brightness Displays
Outdoor LED High Brightness Displays are mainly used for advertising, they could customed size, so could be used at many places, such as alongside the street, exterior wall of shopping center, business center, parks. Screens can be mounted on columns or on building facades.
After-sell service:
1. 2 years quality guarantee period for all parts.
2. Failure maintenance of LED panels.
3. Engineering technical service.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
FAQ:
1. Do you test all your goods?
Yes, we will do aging test of all parts before delivery.
2. Could I have a sample before place mass order?
Yes sure, sample is available for your test.
3. what's your factory location?
We are in Shenzhen China, welcome to visit our company and factory.
4. What's your package and shipping way?
Goods are packed with wooden case; delivered by air shipping or sea shipping.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
