Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 UL FCC CCC |
Model Number: | P2 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
Supply Ability: | 8000 square meters per month |
Product Name: | P2 Curved LED Screen | Pixel Pitch: | 2mm |
---|---|---|---|
Module Size: | 320*160mm | Input Voltage: | 110-220v AC |
Ingress Protection: | IP43 | Defective Rate: | <0.0002 |
Highlight: | Indoor Curved RGB LED Screen,Small Pixel Pitch RGB LED Screen,Studio Conference Curved LED Screen |

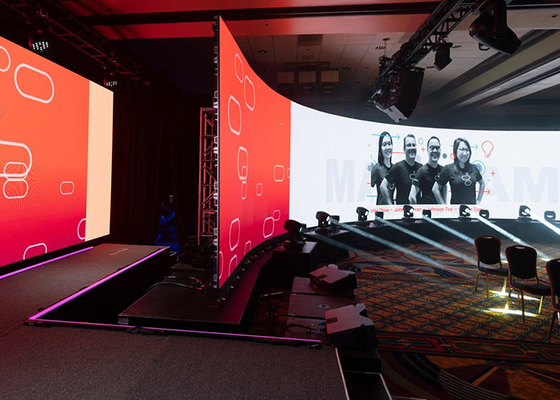

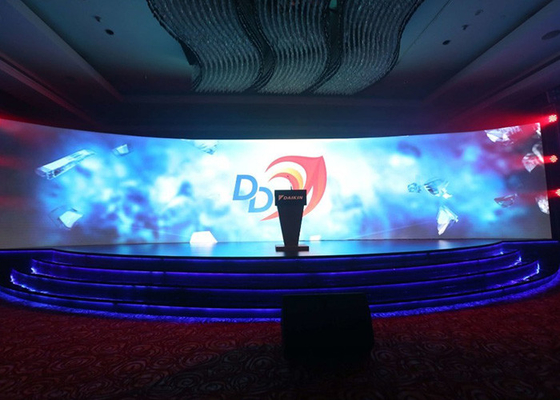

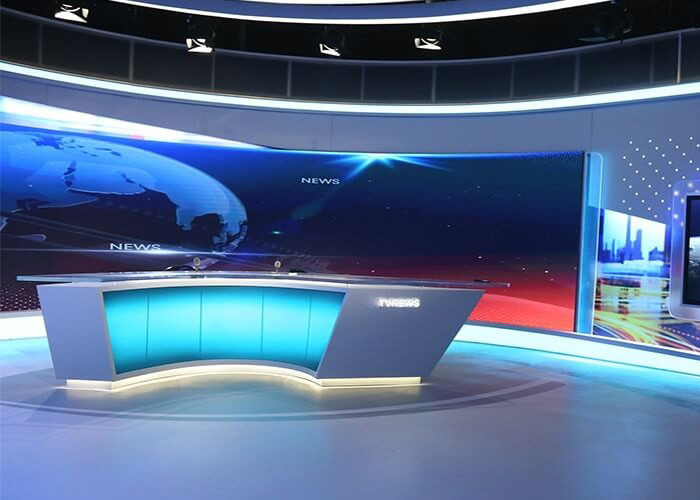

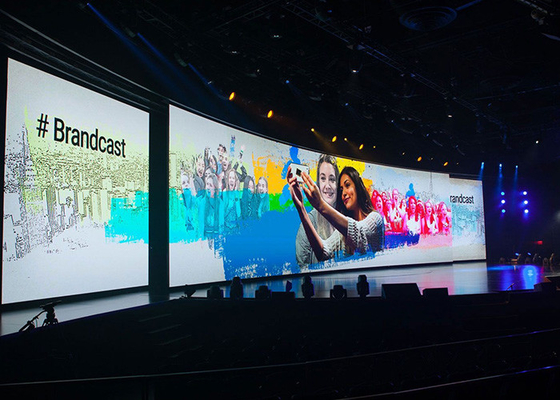

Small Pixel Pitch Indoor Curved LED Screen For Studio Conference Forum
Quick Details of P2 Curved LED Screen
1. Lamp type: SMD1515
2. Screen dimension: Customized
3. Video frame rate: ≥60 Hz
4. Brightness: ≥800nits
5. Physical density: 250000 dots/㎡
Product Parameters(P2 P3 P4 P5)
Item | P2 | P3 | P4 | P5 |
Pixel pitch | 2mm | 3mm | 4mm | 5mm |
Module size | 320*160mm | 240*120mm | 320*160mm | 320*160mm |
Module size | 160*80 | 80*40 | 80*40 | 64*32 |
Physical density | 250000 dots/㎡ | 111111 dots/㎡ | 62500 dots/㎡ | 40000 dots/㎡ |
LED type | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
Module power | 18w | 18w | 18w | 18w |
Best viewing distance | ≥2m | ≥3m | ≥4m | ≥5m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/40 Scan | 1/20 Scan | 1/20 Scan | 1/16 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Why choose our products:
1. Shape & size could be customized, adapt to various application scenarios and designs.
2. Small pixel pitch, no full-screen display of patchwork fine point.
3. Use brand material, like nationstar/kinglight lamp, Novastar/Colorlight system.
4. High Definiton
5. Front maintenance, easy to replace the broken modules.
Applications of LED Flexible Display
· Business organizations
Supermarket, large-scale shopping malls, star -rated hotel, travel agencies
· Financial organizations
Bank, insurance companies, post offices, hospital, schools
· Public place
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room
· Entertainments
Movie theaters, clubs, stages
After-sell Service:
1. Free remote control debuggine serice if you need.
2. Failure maintenance of LED panels.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4. Free professional technical training.
5. Providing controller and software manual, to help customer master all kinds of functions.
FAQ:
1. What if i was a new user?
We can guide on line if customers have questions about the installation and usage.
2. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
3. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
4. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
5. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.
