Place of Origin: | Shenzhen, China |
Brand Name: | KAILITE |
Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
Model Number: | P4,P5, P8, P10 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 22-24 days |
Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
Supply Ability: | 8000 square meters per month |
Pixels: | 8mm, 10mm Outdoor LED Fixed Installation Screen | Function: | Advertising, Concert |
---|---|---|---|
Warranty: | 2 Years | Color: | 1R1G1B |
LED Type: | SMD1921 SMD3535 | Brightness: | 5500nits 6000nits |
Cabinet Size: | 960*960mm | Module Size: | 320*16mm |
Highlight: | RGB Outdoor Advertising Led Display,SMD3535 Outdoor Advertising Led Display,SMD3535 Led Video Wall Screen |
SMD3535 P10 High Quality and RGB Led Video Wall Screen With Front Service
Description of 960*960mm series of outdoor led screen
Outdoor LED display screens are widely used in advertising billboards, sports stadiums, traffic signage, stage backgrounds, and other venues, providing clear, bright, and vibrant image and video display effects. Depending on the requirements, outdoor LED display screens can be chosen in monochrome, dual-color, or full-color display effects, and they also feature remote control, automatic brightness adjustment, and other functionalities to adapt to different usage scenarios.
Specifications of 960*960mm series of outdoor led screens
Item | P4 | P5 | P8 | P10 |
Pixel pitch | 4mm | 5mm | 8mm | 10mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 80×40 | 64×32 | 40×20 | 32×16 |
Physical density | 62500 dots/㎡ | 40000 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
LED type | SMD1921 | SMD1921 | SMD3535 | SMD3535 |
Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm | 960×960×mm |
Cabinet resolution | 240×240 | 192×192 | 120×120 | 96×96 |
Cabinet weight | 25kg | 25kg | 25kg | 25kg |
Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
Maintenance way | Rear | Rear | Rear | Rear |
Best viewing distance | ≥4m | ≥5m | ≥8m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/10Scan | 1/8 Scan | 1/5 Scan, | 1/2 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥5500nits | ≥5500nits | ≥6000nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP65 | IP65 | IP65 | IP65 |
Max power consumption | 0.85kw | 0.85kw | 0.85kw | 0.85kw |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of 960*960mm series outdoor led display
1) High Brightness: The outdoor LED display screens have high brightness levels to ensure clarity and visibility in bright sunlight or during the night.
2) Weatherproof: These screens are designed to withstand various weather conditions, including rain, wind, extreme temperatures, and UV rays. They have a high level of IP protection to ensure durability and longevity.
3) Wide Viewing Angle: It have a wide viewing angle, allowing the audience to view the content clearly from various positions and distances.
4) Energy Efficient: LED technology used in outdoor screens is energy-efficient, reducing power consumption and operating costs.

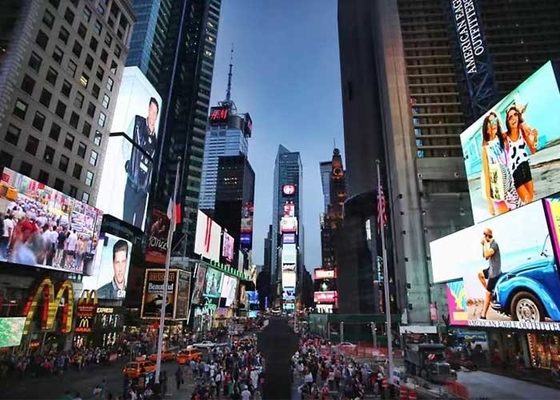

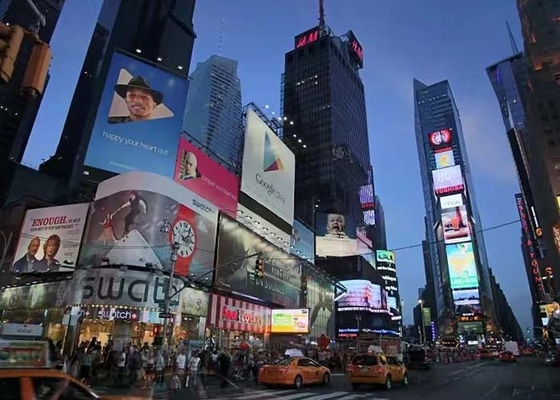

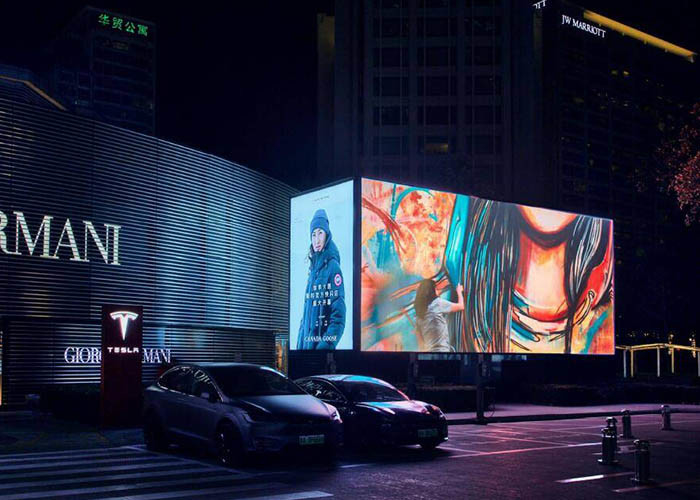

Product pictures
Application of 960*960mm series outdoor led screen
Outdoor fixed LED display can be used in different area, such as at stage, bank, mall, exhibition, stadium, airport .It can suitable for outdoor areas,even high bringhtness or heavy rainy days.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. we put quality frist.We will conduct product inspection before,during,after production.
3. Good service. we support ODM/OEM service.
4. direct price.We are the original manufacturer, no middleman, more saving money.
After-sell Service:
1) Free accesories and spare parts will be sent to you, when you place an order.
2) If you have any questions, we will reply you on time.
3) Installation guid manual of the led screen will be provide for you. No need to worry about assembling the led screen.
4) Two years warranty for all parts of your order, during the warranty period, if there any issue, we will repair and replace it for free for your order.
FAQ:
1.Q: How much the shipping cost will take?
It depends on your other and your country. tell me your quantity, i will ask the freight forwarder.
2.Q: What is the warranty of your led display?
A: 2 years for all parts of led screen.
3:Q: What is your payment terms?
EXW, 40% in advance, 60% before shipment.
4. Can place an sample other?
Yes, sure.
5. What's the lead time for mass order?
Normally, it takes about 20-35 days, depends on the order quantity.
