Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE UL FCC CCC RoHS ISO9001 |
Model Number: | P2.5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case/Carton |
Delivery Time: | about 22-24 days |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A |
Supply Ability: | 8000 square meters per month |
Product Name: | P2.5 Curved LED Display | Pixel Pitch: | 2.5mm |
---|---|---|---|
Module Size: | 320*160mm | Application: | Advertising Background Show Information Board |
Physical Density: | 160000 Dots/㎡ | Input Voltage: | AC 110-220v±10% |
Power Supply: | G-energy/YouYi/Meanwell/Rong Electric | Driving Method: | 1/32 Scan, Constant Current |
Highlight: | 2.5mm HD Curved LED Displays,Bendable Curved LED Displays |
2.5mm HD Curved LED Displays Bendable Design Forum Promotion Meeting
Quick details of P2.5 Curved LED Display
1. Best viewing distance: ≥2.5m
2. Grey level: 12-16bit
3. Video frame rate: ≥60 Hz
4. Best viewing angle: H: 160°; V:160°
5. Refresh rate: 1920-3840Hz
Product Parameters:
Item | P2.5 | P3 | P4 | P5 |
Pixel pitch | 2.5mm | 3mm | 4mm | 5mm |
Module size | 320*160mm | 240*120mm | 320*160mm | 320*160mm |
Module size | 128*64 | 80*40 | 80*40 | 64*32 |
Physical density | 160000 dots/㎡ | 111111 dots/㎡ | 62500 dots/㎡ | 40000 dots/㎡ |
LED type | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
Module power | 18w | 18w | 18w | 18w |
Best viewing distance | ≥2.5m | ≥3m | ≥4m | ≥5m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/32 Scan | 1/20 Scan | 1/20 Scan | 1/16 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Advantages:
1. Small pixel pitch, high definition, high grey level(12-16bit).
2. Bendable shape, different styles of design.
3. Attach to the structure with magnets, easy and convenient to replace the module from front.
4. High contrast, low power consumption.
5. Wide viewing angle(H: 160°; V:160°), adapt to public occasions.

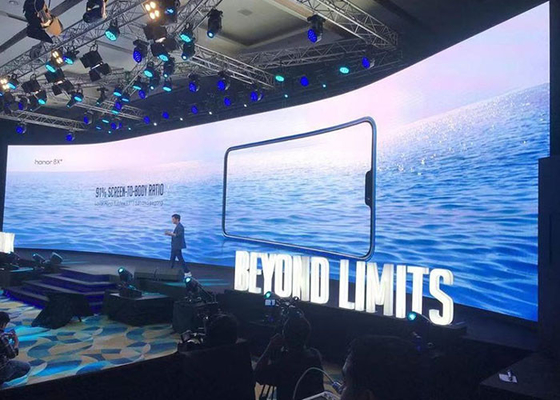

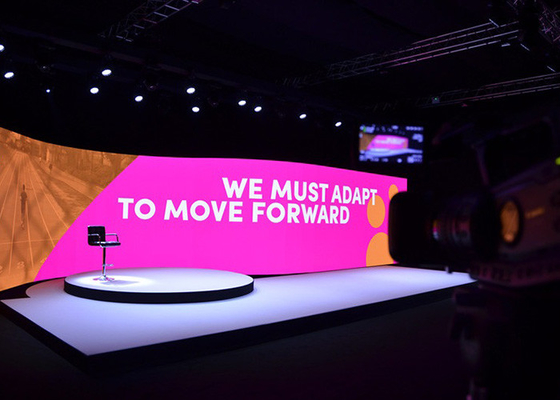

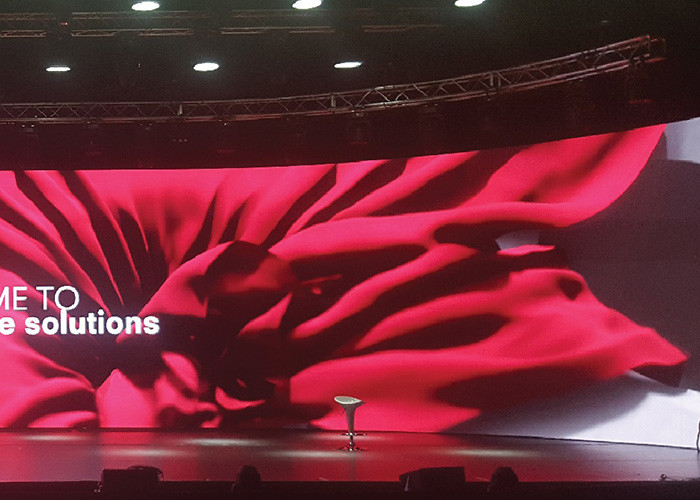

Applications of Curved LED Displays
Curved LED Display has much differences from traditional straight screen, the module is bendable and can attach to various shape iron structures, so can be applied to angled corner and for many types design. Widely used in public occasions such as exhibition, museum, shopping mall, control room, Stage, Commercial center.
After-sell Service:
1. 2 years warranty.
2. On-line response about customers' technician question.
3. Free technical training for how to use and handle the software.
4. Provide installation instructions data and guidance by professional staff.
FAQ:
1. Can your factory accept OEM or ODM?
Yes, We can accept OEM and ODM,.and can print logo.
2. Is the product customizable?
Yes, we can customize the product according to clients' request, you just need to provide the requirements details.
3. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
4. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
5. This is the first time to import, I don’t know how to do.
We offer DDP door to door service, you just need to pay us, then wait to receive order.
