Place of Origin: | Shenzhen, China |
Brand Name: | KAILITE |
Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
Model Number: | P4,P5, P8, P10 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 22-24 days |
Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
Supply Ability: | 8000 square meters per month |
Pixels: | 8mm, 10mm Outdoor LED Fixed Installation Screen | Function: | Advertising, Concert |
---|---|---|---|
Warranty: | 2 Years | Color: | 1R1G1B |
LED Type: | SMD1921 SMD3535 | Brightness: | 5500nits 6000nits |
Cabinet Size: | 960*960mm | Module Size: | 320*16mm |
Highlight: | Interactive 3D Video Wall Screen,Hologram 3D Video Wall Screen |
Naked Eye Hologram Technology Immersive Advertising Interactive 3D Video Wall Screen
Description of 960*960mm series of outdoor led screen
3D naked-eye LED displays provide autostereoscopic viewing without glasses, offer high image quality, wide viewing angles, and real-time 3D conversion. They have versatile applications, are cost-effective, attention-grabbing, and provide a comfortable viewing experience.
Specifications of 960*960mm series of outdoor led screens
Item | P4 | P5 | P8 | P10 |
Pixel pitch | 4mm | 5mm | 8mm | 10mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 80×40 | 64×32 | 40×20 | 32×16 |
Physical density | 62500 dots/㎡ | 40000 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
LED type | SMD1921 | SMD1921 | SMD3535 | SMD3535 |
Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm | 960×960×mm |
Cabinet resolution | 240×240 | 192×192 | 120×120 | 96×96 |
Cabinet weight | 25kg | 25kg | 25kg | 25kg |
Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
Maintenance way | Rear | Rear | Rear | Rear |
Best viewing distance | ≥4m | ≥5m | ≥8m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/10Scan | 1/8 Scan | 1/5 Scan, | 1/2 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥5500nits | ≥5500nits | ≥6000nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP65 | IP65 | IP65 | IP65 |
Max power consumption | 0.85kw | 0.85kw | 0.85kw | 0.85kw |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of 960*960mm series outdoor led display
1) 3D naked-eye LED displays deliver high-resolution visuals with vibrant colors and sharp details, creating an immersive and lifelike viewing experience
2) Auto-Stereoscopic Viewing: A 3D naked-eye LED display provides an autostereoscopic viewing experience without the need for 3D glasses, allowing viewers to perceive depth and dimensionality in the displayed content.
3) Wide Viewing Angle: It have a wide viewing angle, allowing the audience to view the content clearly from various positions and distances.
4) Energy Efficient: LED technology used in outdoor screens is energy-efficient, reducing power consumption and operating costs.

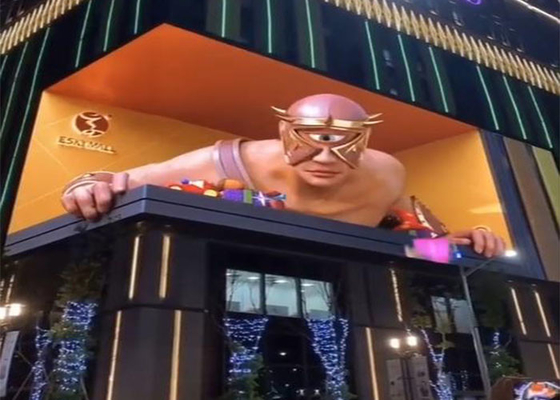

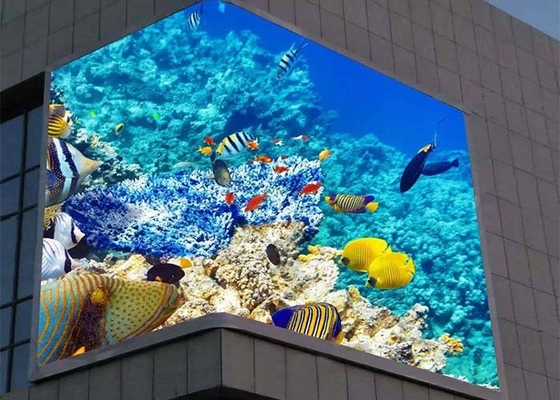

Product pictures
Application of 960*960mm series outdoor led screen
Outdoor fixed LED display can be used in different area, such as at stage, bank, mall, exhibition, stadium, airport .It can suitable for outdoor areas,even high bringhtness or heavy rainy days.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. leading time is very fast,because we have a big warehouse and most of our products have large stock in whole year.
3. Good service. we support ODM/OEM service.
4. All products have CE, ROCHS AND FCC certificates.
After-sell Service:
1) Free accesories and spare parts will be sent to you, when you place an order.
2) If you have any questions, we will reply you on time.
3) Installation guid manual of the led screen will be provide for you. No need to worry about assembling the led screen.
4) Two years warranty for all parts of your order, during the warranty period, if there any issue, we will repair and replace it for free for your order.
FAQ:
1.Q: Can I have a sample order for led screen panel?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2.Q: Are you a factory or trading company?
A:We are a factory.
3:Q: What is your payment terms?
EXW, 40% in advance, 60% before shipment.
4. what can you buy from us?
LED Display and led modules
5. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
