Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE UL FCC CCC RoHS ISO9001 |
Model Number: | P2 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | about 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 8000 square meters per month |
Product Name: | P2 Indoor LED Boards | Screen Dimension: | Customized |
---|---|---|---|
Led Type: | SMD1515 | Refresh Rate: | 1920-3840Hz |
Maintenance Way: | Front | Best Viewing Angle: | H: 160°; V:160° |
Highlight: | P2 Digital Indoor LED Boards,P4 Indoor LED Boards |
Digital Indoor LED Boards For Advertising Conference P2 P2.5 P3.07 P4
Quick details of P2 Indoor LED Boards
1. Driving method: 1/40 Scan, constant current.
2. Video frame rate: ≥60 Hz
3. Grey Level: 12-16bit
4. Life Time: >100,000 Hours
5. Brightness: ≥800nits
Product Parameters(2mm 2.5mm 3.076mm 4mm)
Pixel pitch | 2mm | 2.5mm | 3.076mm | 4mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 160×80 | 128×64 | 104×52 | 80×40 |
Physical density | 250000 dots/㎡ | 160000 dots/㎡ | 105688 dots/㎡ | 62500 dots/㎡ |
LED type | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
Cabinet size | 640*480mm | 640*480mm | 640*480mm | 640*480mm |
Cabinet resolution | 320*240 | 256*192 | 208*156 | 160*120 |
Maintenance way | Front | Front | Front | Front |
Best viewing distance | ≥2.5m | ≥2.9m | ≥3m | ≥3m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/40 Scan | 1/32 Scan | 1/26 Scan, | 1/20 Scan |
Video frame rate | ≥60 Hz | |||
Refresh rate | 1920-3840Hz | |||
Brightness | ≥800nits | |||
Grey Level | 12-16bit | |||
Ingress protection | IP43 | |||
Life Time | >100,000 Hours | |||
The rate | <0.0002 |
Features of Indoor LED Boards
1. High definition, physical density(250000 dots/㎡).
2. Low defective rate(<0.0002), long life span.
3. High refresh rate(over 1920Hz).
4. Aluminum cabinet, light weight and slim.
5. Wide viewing agnel(H: 160°; V:160°).

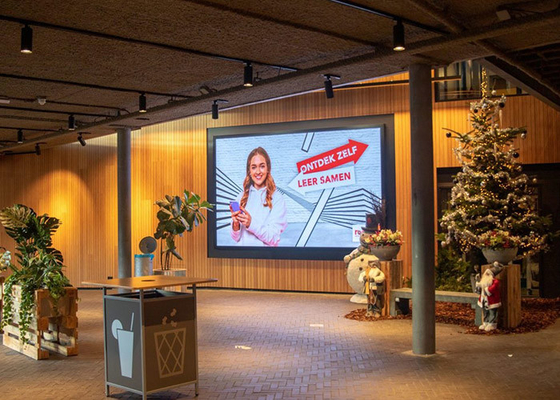

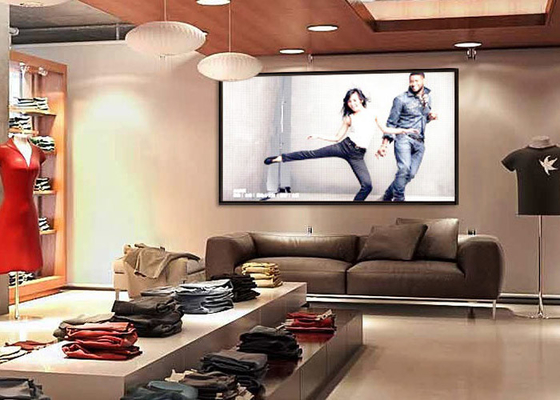

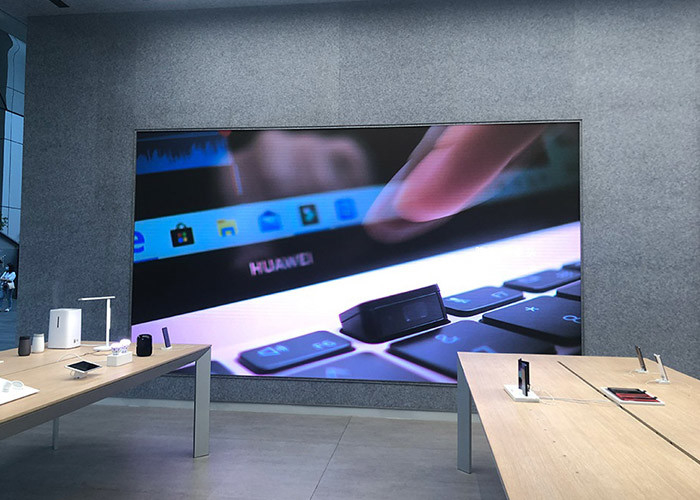

Applications of Indoor LED Boards
1. Commercial Ads for shopping mall, store, restaurants.
2. Signage for school, hospital, church.
3. Live show, conference, control room.
4. Stage events such as concert, exhibition, etc.
After-sell Service
1. Free technical training about the usage of software.
2. 24-hour hotline service, including counseling and technical guidance.
3. Free remote control debuggine serice if you need.
4. Failure maintenance of LED panels.
5. Warranty service.
FAQ:
1. What trade terms do you support?
We usually do EXW, FOB, CIF, DDU, DDP terms.
2. What is LED screen common size?
16:9 and 4:3 aspect ratio is popular.
3. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
4. Do you provide any free spare parts in each order?
Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
5. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.
