Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE UL FCC CCC RoHS ISO9001 |
Model Number: | P1.2 P1.5 P1.8 P2 P2.5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | about 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 8000 square meters per month |
Product Name: | P1.86 Indoor LED Screen | Cabinet Size: | 640*480*49mm |
---|---|---|---|
Led Type: | SMD1515 | Refresh Rate: | 1920-3840Hz/over 3840Hz |
Maintenance Way: | Front | Best Viewing Angle: | H: 160°; V:160° |
Highlight: | SMD1515 Indoor Fixed LED Screen,Ultra HD Indoor Fixed LED Screen |

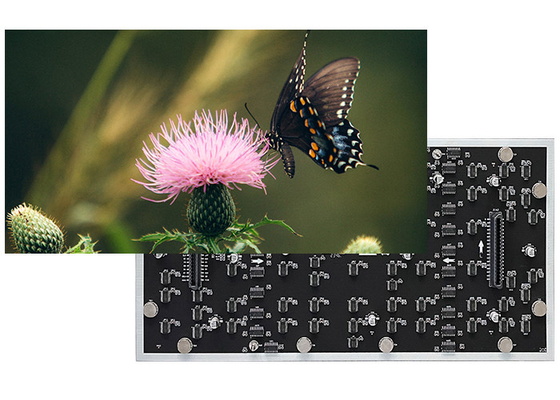

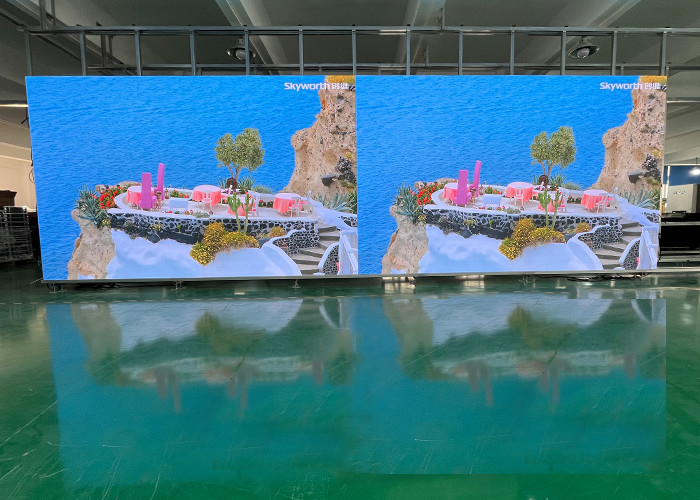

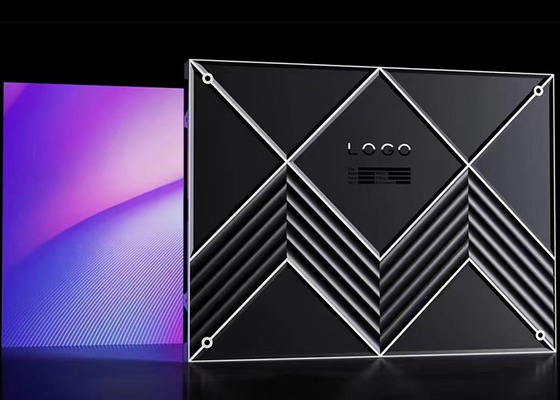

New Arrival Indoor Fixed Screen Ultra HD P1.2 P1.5 P1.8 P2 P2.5
Quick details of P1.86 Indoor LED Screen
1. Brightness: ≥800nits
2. Video frame rate: ≥60 Hz
3. Grey Level: 12-16bit
4. Life Time: >100,000 Hours
5. Ingress protection: IP43
Product Parameters(1.2mm 1.8mm 2mm 2.5mm)
Pixel pitch | 1.25mm | 1.86mm | 2mm | 2.5mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 256×128 | 172×86 | 160×80 | 128×64 |
Physical density | 640000 dots/㎡ | 289050 dots/㎡ | 250000 dots/㎡ | 160000 dots/㎡ |
LED type | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
Cabinet size | 640*480mm | 640*480mm | 640*480mm | 640*480mm |
Cabinet resolution | 512*384 | 344*258 | 320*240 | 256*192 |
Maintenance way | Front | Front | Front | Front |
Best viewing distance | ≥1.2m | ≥1.8m | ≥2m | ≥2.5m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/64 Scan | 1/43 Scan | 1/40 Scan, | 1/32 Scan |
Video frame rate | ≥60 Hz | |||
Refresh rate | 1920-3840Hz/ over 3840Hz | |||
Brightness | ≥800nits | |||
Grey Level | 12-16bit | |||
Ingress protection | IP43 | |||
Life Time | >100,000 Hours | |||
The rate | <0.0002 |
Main advantages of the new product
1. Hard connection with HUB Board, easy and fast for installation

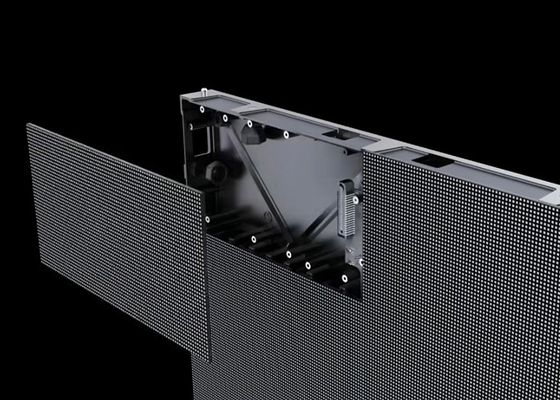

2. Full front maintenance design, easy and convenient for maintenance
3. Ultra thin(49mm thickness) and light(aluminum cabinet)
4. Ultra high quality images with high resolution; high resfresh rate and high contrast
5. Fresh and unique look
Applications of Ultra HD Indoor fixed screen
1. Live show, conference, control, meeting room.
2. Commercial Ads for shopping mall, store, restaurants.
3. Signage for school, hospital, church.
4. Information board, Background, etc.
After-sell Service
1. 2 years quality guarantee period for all parts.
2. 24-hour hotline service, including counseling and technical guidance.
3. Free remote control debuggine serice if you need.
4. Engineering technical service.
5. Failure maintenance of LED panels.
FAQ:
1. Can your factory accept OEM or ODM?
Yes, We can accept OEM and ODM,.and can print logo.
2. Do you provide any free spare parts in each order?
Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
3. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
4. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
5. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.
