Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS UL FCC CCC ISO9001 |
Model Number: | P2.5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case or flight case |
Delivery Time: | About 22-24 days on average |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
Supply Ability: | 8000 square meters per month |
Product Name: | P2.5 Splicing Poster LED Screen | Lamp Type: | SMD2020 |
---|---|---|---|
Used: | Entrance Of Company Or Store | Maintenance Way: | Front |
Refresh Rate: | 1920-3840Hz | Ingress Protection: | IP43 |
Highlight: | Splicing Poster LED Screen,Moveable Poster LED Screen |

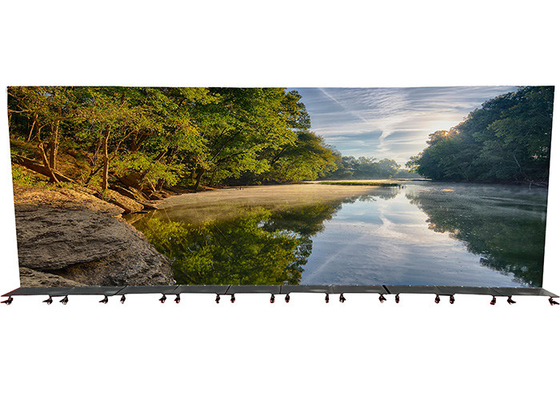

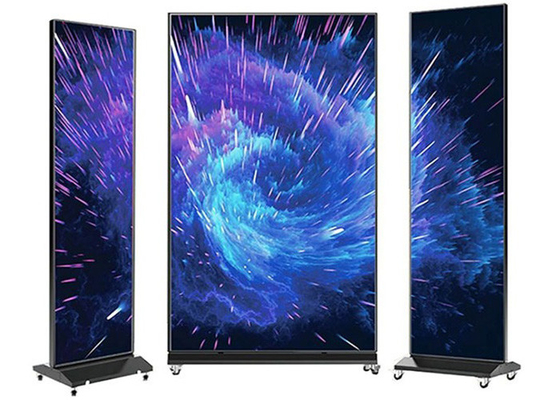

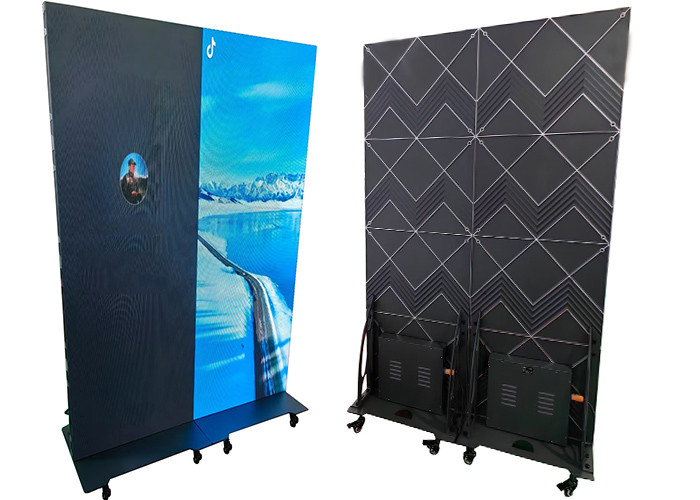

Splicing Poster LED Screen P1.86 P2 P2.5 Moveable For Company Entrance Store
Quick details of P2.5 Splicing Poster LED Screen
1, Pixel Pitch: 2.5mm
2, Driving method: 1/32 Scan, constant current
3, Best viewing angle: H: 160°; V:160°
4, Input voltage:110-240V AC
5, Regular full screen size: 640mm(Width)*1920mm(Height)
Specification of products(P1.86 P2 P2.5)
Item | P1.86 | P2 | P2.5 |
Pixel pitch | 1.86mm | 2mm | 2.5mm |
Module size | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 172×86 | 160×80 | 128×64 |
Physical density | 289050 dots/㎡ | 250000 dots/㎡ | 160000 dots/㎡ |
LED type | SMD1515 | SMD1515 | SMD2020 |
Cabinet size | 640*480mm | 640*480mm | 640*480mm |
Cabinet resolution | 384*258 | 320*240 | 256*192 |
Maintenance way | Front | Front | Front |
Best viewing distance | ≥1.8m | ≥2m | ≥2.5m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/43 Scan | 1/40 Scan | 1/32 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 |
Features of Splicing Poster LED Screen
1. Front maintenance way, easy to replace module and repair components.
2. Video frame rate(≥60 Hz), screen smoother.
3. Made up of several cabinets spliced together, could save transportation space.
4. Several Poster LED screen could be seamlessly spliced together to form a larger screen.
5. Grey Level(12-16bit).
Applications of Splicing Poster LED Screen
1. Entrance of company, stores, shopping mall.
2. Background of conference room.
3. Information board at High way station and airport.
4. Introduction panel at exhibition.
Cases
Advantages:
1. Strict quality control ability for full production process.
2. Exclusive design of cabinet.
3. Pin connection, Increase security and stability
4. Factory supply, best price and convenient to custom made.
5. High contrast, rich color, looks smooth and vivid.
After-sell service:
1) Online service of professional staff.
2) Free remote control debuggine serice if you need.
3) 2 years warranty, and could be be extended by paying additional fee.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Provide solutions to technical problems when playback is abnormal.
FAQ:
1. Is the product customizable?
Yes, we can customize the product according to customers' demand, you just need to provide the details.
2. How can I make sure you are a manufacturer?
You can search on the internet or have a video call with our staff, even a visit to our factory is welcomed if you are in Shenzhen.
3. What is the delivery time?
About 22-24 days after we receiving the deposit.
4. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. What’s your control system? How is it?
Our most common used system is Novastar, famous brand and good quality.
