Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 UL FCC CCC |
Model Number: | P4 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | wooden case/flight case/carton case |
Delivery Time: | about 22-24 days |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A |
Supply Ability: | 8000 square meters per month |
Product Name: | Outdoor LED Module | Maintenance Way: | Front/Rear |
---|---|---|---|
Cabinet Size: | Customized | Input Voltage: | 110-220v AC |
Brightness: | 5000-8000cd/㎡ | Fixing Method: | Magnets Or Screws |
Highlight: | P2.5 Outdoor LED Module,P10 Outdoor LED Module,Customized Size Outdoor LED Module |
Outdoor LED Module P2.5 P4 P8 P10 For External Wall Sign Billboard
Description of Outdoor LED Module

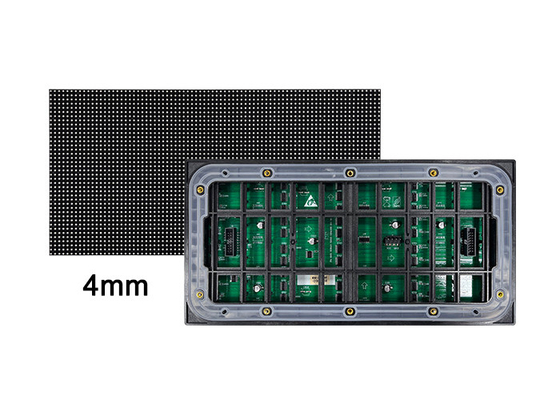

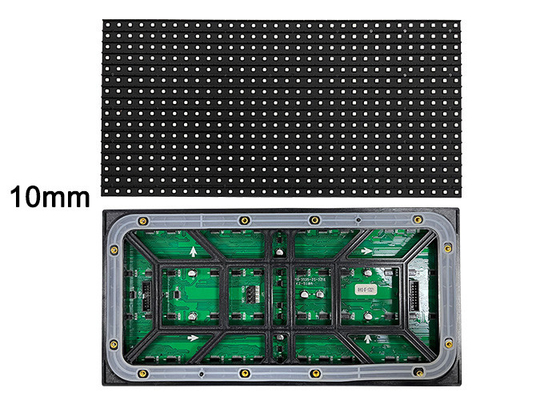

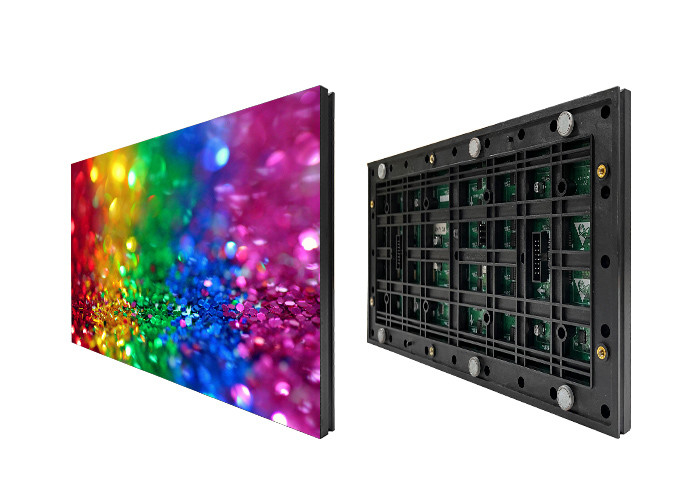

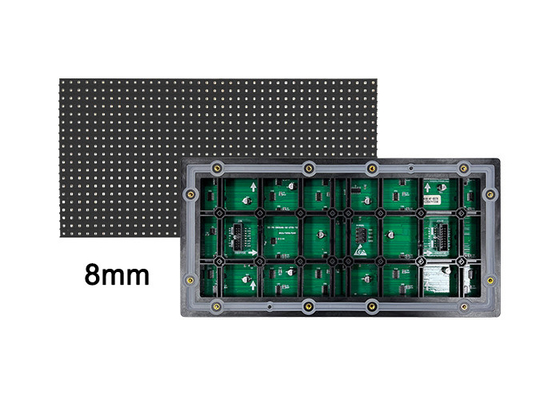

Outdoor LED Module pixel include 2.5mm, 3mm, 3.076mm, 4mm, 5mm, 6mm, 6.67mm, 8mm, 10mm, within these pixels, 4mm, 5mm, are the most hot-selling and highest cost-effective series. The module can be fixed to the structure by magnets or screws to form a screen, and the size of the screen is not limited.
Product Details
Item | P4 | Best viewing angle | H: 160°; V:160° |
Pixel pitch | 4mm | Video frame rate | ≥60 Hz |
Module size | 320*160mm | Driving method (Constant Current) | 1/10 Scan |
Module size | 80*40 | Refresh rate | 1920-3840Hz |
Physical density | 62500 dots/㎡ | Brightness | ≥5000nits |
LED type | SMD1921 | Grey Level | 12-16bit |
Module power | 38w | Defective Rate | <0.0002 |
Best viewing distance | ≥4m | Life Time | >100,000 Hours |
Why you choose us:
1. 11 years concentrate in making good product and provide best service to customers.
2. Strict QC tests at the whole production lines.
3. Quick response with solutions for your any question.
4. Over 10 years' export experience, familiar with export procedures and support door-to-door service.
5. SMT automation technology guarantees product use.
Applications:
Used for building exterior advertising screens, traffic system signs, store billboards, street signs, and highway signs.
Shipping and Package:
Service Content
1. Customized solution design.
2. Online help debugs the program and completes the screen test.
3. 2 years warranty.
4. Providing controller and software manual, to help customer master all kinds of functions.
5. Maintenance of damaged modules.
FAQ:
1. Is the product customizable?
Yes, we can customize the product on your request, you just need to provide the requirements details.
2. How can we guarantee quality?
We use good raw material for all parts and we aging at least 72 hours before shipping. Besides, we accept Alibaba Trade Assurance Order, if quality is not good, we refund to you.
3. I don't know how to do custom clearance and pay duty, what should I do?
We can offer DDP door to door service.
4. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.
