| Place of Origin: | Shenzhen China |
| Brand Name: | KAILITE |
| Certification: | CE RoHS ISO9001 UL FCC CCC |
| Model Number: | P3.91 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | about 22-24 days |
| Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
| Supply Ability: | 8000 square meters per month |
| Product Name: | P3.91 Outdoor LED Display Alloy Material | Application: | Outdoor Poster Billboard Signage |
|---|---|---|---|
| Brightness: | ≥5000nits | LED Type: | SMD1921 |
| Cabinet Weight: | 23.5kg/pcs | Maintenance Way: | Front&Rear |
| Highlight: | Light Weight Alloy Material LED Display,SMD1921 Advertisement LED Display,Advertisement Outdoor LED Display |
||

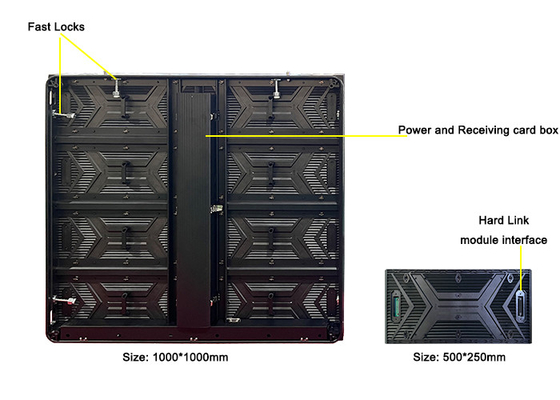

Light Weight Alloy Material Outdoor LED Display For Advertisement
Quick details of P3.91 Outdoor LED Display
1. Defective rate: <0.0002
2. Cabinet material: Alloy
3. Refresh rate: 1920-3840Hz
4. Ingress protection: IP65
5. Cainet size: 1000*1000mm
Specification of Alloy Outdoor LED Display
| Item | P3.91 | P4.81 | P7.81 |
| Pixel pitch | 3.91mm | 4.81mm | 7.81mm |

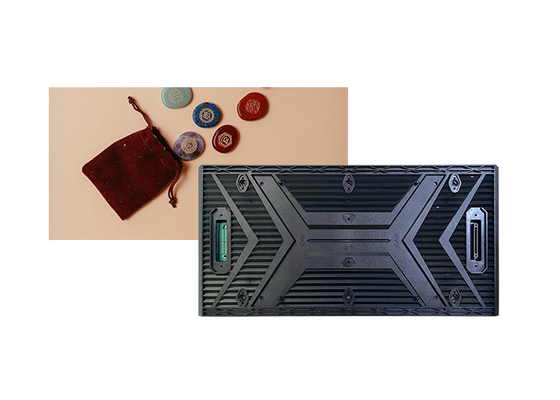

| Module size | 500*250mm | 500*250mm | 500*250mm |
| Module resolution | 128×64 | 104×52 | 64×32 |
| Physical density | 65536 dots/㎡ | 43264 dots/㎡ | 16384 dots/㎡ |
| LED type | SMD1921 | SMD31921 | SMD3535 |

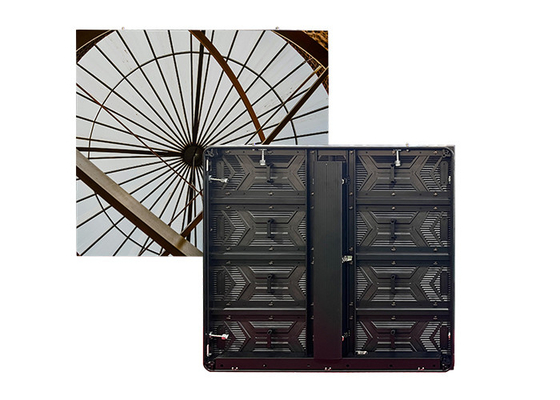

| Cabinet size | 1000×1000mm | 1000×1000mm | 1000×1000mm |
| Cabinet resolution | 256×256 | 208×208 | 128×128 |
| Cabinet material | Alloy | Alloy | Alloy |
| Maintenance way | Front&Rear | Front&Rear | Front&Rear |
| Best viewing distance | ≥3.9m | ≥4.8m | ≥8m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/8 Scan, | 1/13 Scan | 1/4 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5000nits | ≥5000nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 | IP65 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 |
Features of Alloy Material Outdoor LED Display
1. High brightness(≥5000nits), looks clear in the direct sunlight.
2. Light weight, not as heavey as iron cabinet.
3. Support both front and rear maintenance way, greatly facilitates later maintenance.
4. Full waterproof design, protect the screen from rain.
5. Hardware connection, interface is stable and not easy to damage.

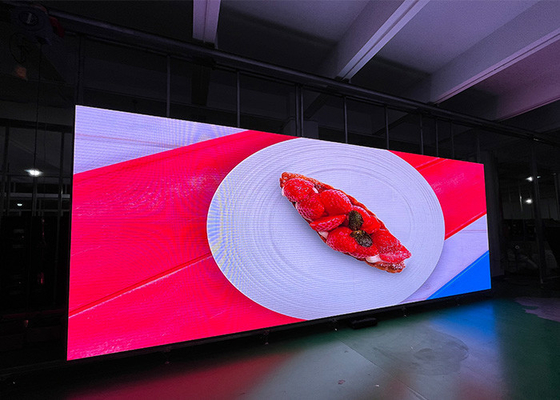

Applications:
Almost everywhere which you go through every day. Shopping malls, Bus station, Subway, Hospital, School, Large sports playground, Baseball field etc. With high brigthness and great protection from dust and moisture, they are used at outdoor places quite a lot and keep working for a long time.
After-sell Service:
1. 2 years quality guarantee period.
2. Installation guidance by experienced staff online.
3. Lifetime failure maintenance of LED panels.
4. Free remote control debuggine serice if you need.
FAQ:
1. Are you trading company or manufacturer?
We are a professional factory, producing by ourselves.
2. What is the control system?
Novastar/LINSN/Colorlight for synchronous system, Novastar/Huidu for asynchronous system. we have several options for customer.
3. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
4. How can we guarantee quality?
We use good raw material for all parts and we aging at least 72 hours before shipping.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU..
