Place of Origin: | Shenzhen, China |
Brand Name: | KAILITE |
Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
Model Number: | P2.9/P3.9/P4.8/P5.2 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 22-24 days |
Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
Supply Ability: | 8000 square meters per month |
Pixels: | 3.91mm, Mm Outdoor LED Fixed Installation Screen | Function: | Advertising, TV, Game Show |
---|---|---|---|
Warranty: | 2 Years | Supplier Type: | Original Manufacturer, ODM, OEM |
LED Type: | SMD1921 | Brightness: | 5000nits |
Cabinet Size: | 1000*1000mm | Module Size: | 250*250mm |
Protection Grade: | IP67 | Installation: | Wall-mounted/ground-mounted |
Highlight: | P4.81 HD LED Screen,250*250mm Waterproof Billboard,P3.91 Waterproof Billboard |
250*250mm P3.91 Waterproof Billboard, SMD1921 P4.81 HD Led Screen
Description of 250*250mm outdoor full sealed led module
Outdoor fully enclosed back cover LED modules perform well in outdoor environments due to their strong protective performance, energy saving and environmental protection, high brightness and high contrast, versatility and flexibility, easy maintenance and upgrades, and flame retardant and fire protection, and are suitable for Various advertising, cultural entertainment and urban construction scenes.
Specifications of 250*250mm outdoor full sealed led module
Item | P2.97 | P3.91 | P4.8 | P5.2 |
Pixel pitch | 2.976mm | 3.91mm | 4.81mm | 5.208mm |
Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
Module resolution | 84×24 | 64×64 | 52×52 | 48×48 |
Physical density | 336021 dots/㎡ | 65410 dots/㎡ | 43222 dots/㎡ | 36868 dots/㎡ |
LED type | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
Cabinet size | 1000×1000×mm | 1000×1000×mm | 1000×1000×mm | 1000×1000×mm |
Cabinet resolution | 336×336 | 256×256 | 208×208 | 192×192 |
Cabinet weight | 29kg | 29kg | 29kg | 29kg |
Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
Maintenance way | Rear | Rear | Rear | Rear |
Best viewing distance | ≥2.976m | ≥3.91m | ≥4.8m | ≥5.2m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/21Scan | 1/16 Scan | 1/13 Scan, | 1/8 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥5500nits | ≥5500nits | ≥6000nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP67 | IP67 | IP67 | IP67 |
Max power consumption | 0.85kw | 0.85kw | 0.85kw | 0.85kw |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of 250*250mm outdoor full sealed led module
1) High brightness and high contrast: The outdoor fully enclosed back cover LED module uses high-brightness LED beads, which can clearly display images and video content even in outdoor environments under direct sunlight, ensuring good visual effects
2) Waterproof and dustproof: The fully enclosed design allows the module to operate stably in various weather conditions, such as rain, sand, etc., without affecting its performance. This design ensures the reliability and durability of the module in various environments
3) High contrast: can present richer and more delicate colors.
4) Energy Efficient: LED technology used in outdoor screens is energy-efficient, reducing power consumption and operating costs.

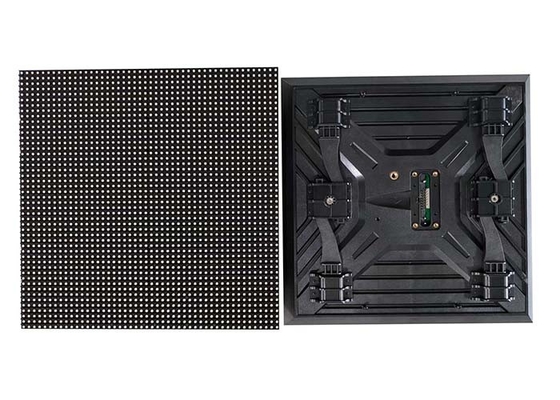

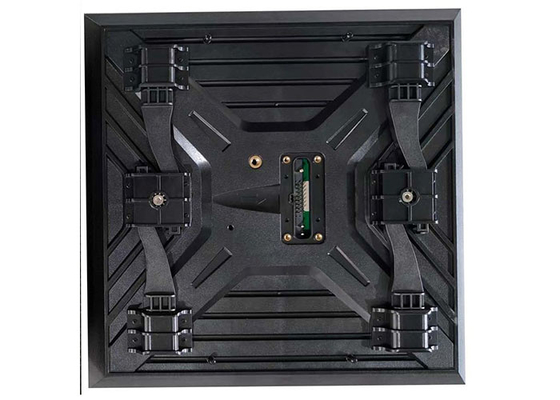

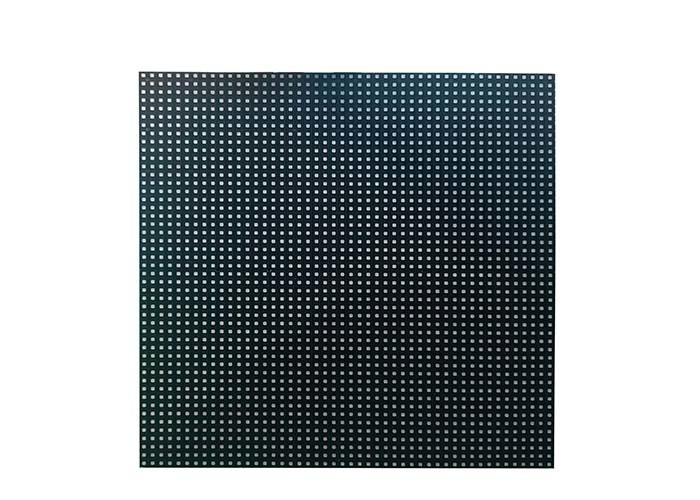

Product pictures
Application of 250*250mm outdoor full sealed led module
Outdoor fixed LED display can be used in different area, such as at stage, bank, mall, exhibition, stadium, airport .It can suitable for outdoor areas,even high bringhtness or heavy rainy days.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry. Our factory has 8 patch production lines, with a monthly output of up to 5000sqm, extremely fast production speed and high production capacity. Using imported machines, product quality is stable.
2. High quality, we use high quality row materials, longer service life.
3. Good service. we support ODM/OEM service. and good pre-sales and after-sales service. Even after off-duty hours, we will respond to your questions in a timely manner and provide quotation plans
4. Direct price. If you place order for us, the factory price will be provide to you.
Service:
1) Free accesories and spare parts will be sent to you, when you place an order.
2) If you have any questions, we will reply you on time.
3) Installation guid manual of the led screen will be provide for you. No need to worry about assembling the led screen.
4) Two years warranty for all parts of your order, during the warranty period, if there any issue, we will repair and replace it for free for your order.
5)Provide technical group chat for learning and problem solving.
FAQ:
1.Q: I need a customized product, is this possible?
Yes, it is possible and we can provide customized services
2.Q: What is the warranty of your led display?
A: 2 years for all parts of led screen.
3:Q: I need my product urgently, can you expedite production for me?
Yes, we can provide you with special channels to speed up the completion of your product
4. Can i place an sample other to check the details and the function of the led screen?
Yes, sure.
5. I have very high requirements for the waterproofness of my products. Can you provide waterproof testing for my products?
No problem, when your product is completed, we will arrange testing for your product and send you a video for your review.
