Street Smart Light Pole LED Screen Double/Single Side 4G Network Control

Street Smart Light Pole LED Screen Double/Single Side 4G Network Control

  • Street Smart Light Pole LED Screen Double/Single Side 4G Network Control
  • Street Smart Light Pole LED Screen Double/Single Side 4G Network Control
  • Street Smart Light Pole LED Screen Double/Single Side 4G Network Control
  • Street Smart Light Pole LED Screen Double/Single Side 4G Network Control
Street Smart Light Pole LED Screen Double/Single Side 4G Network Control
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS ISO9001 UL FCC CCC
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: about 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P4 Street Light Pole Advertising Screen Screen Size: Customized(1to 2m By 1 To 2m)
Application: Outdoor Advertising/Information Display Brightness: ≥5000nits
LED Type: SMD1921 Maintenance Way: Rear
Highlight:

Double Side LED Screen

,

4G Network Control LED Screen

,

Single Side LED Screen

Street Smart Light Pole LED Screen Double/Single Side 4G Network Control





Quick details of P4 Street Light Pole Advertising Screen



1. Installlation Type: on the light pole



2.Frame material: Iron



3. Refresh rate: 1920-3840Hz



4. Ingress protection: IP65 waterproof



5. Cainet size: Length/Height(1m to 2m)





Specification of Street Light Pole Advertising Screen



Item P4 P5 P8
Pixel pitch 4mm 5mm 8mm
Module size 320*160mm 320*160mm 320*160mm
Module resolution 80×40 64×32 40×20
Physical density 62500 dots/㎡ 40000 dots/㎡ 15625 dots/㎡
LED type SMD1921 SMD1921 SMD3535
Cabinet size Customized Customized Customized
Cabinet material Iron Iron Iron
Maintenance way Side Lock Side Lock Side Lock
Best viewing distance ≥4m ≥5m ≥8m
Best viewing angle H: 140°; V:140° H: 140°; V:140° H: 140°; V:140°
Driving method (Constant Current) 1/10 Scan, 1/8 Scan 1/4 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥5000nits ≥5000nits ≥6000nits
Grey Level 12-16bit 12-16bit 12-16bit
Ingress protection IP65 IP65 IP65
Life Time >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002





Features of P4 Street Light Pole Advertising Screen


1. Long life time, MTBF: 5000 hours, could be longer if replace the modules


2. Optional single side and double side



3. ​Cabinet size could be customized, ensure high utilization of space



4. Full waterproof design, protect the screen from rain



5. Support remote control, intelligent settings to control playback

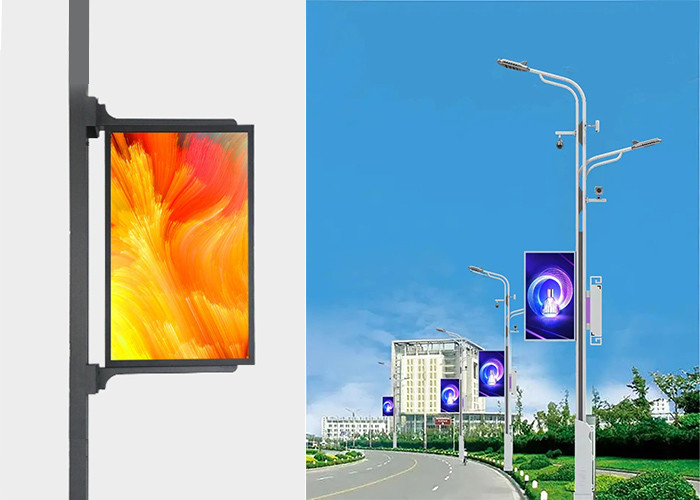

Applications:



Streets, bridges, highways, bus stations, parks, etc.





Street Smart Light Pole LED Screen Double/Single Side 4G Network Control 0




After-sell Service:


1. 2 years warranty.


2. Control method and setting guide.


3. Maintenance of LED panels.


4. Free remote control debuggine serice if you need.




FAQ:


1. Can your factory accept OEM or ODM?
Yes, We can accept OEM and ODM,.and can design solutions based on customer situations.


2. What is the control system?
Novastar/Colorlight/ for synchronous system, Novastar/Huidu for asynchronous system. we have several options for customer.


3. How long is the life span?

First of all, we provide a two-year warranty period. Secondly, if the module is replaced, 4-5 years is generally no problem. Finally, if the conditions are good, it can be used for a longer time. The life of the LED lamp beads is up to 100,000 hours.


4. Do you test all your goods before delivery?
Yes, we have 100% test and more than three times before delivery.


5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU..
