| Place of Origin: | Shenzhen China |
| Brand Name: | KAILITE |
| Certification: | CE UL FCC CCC RoHS ISO9001 |
| Model Number: | P1.2 P1.5 P1.8 P2 P2.5 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case/Flight case |
| Delivery Time: | about 22-24 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 8000 square meters per month |
| Product Name: | P2.5 Indoor LED Screen | Led Type: | SMD2020 |
|---|---|---|---|
| Refresh Rate: | Over 3840Hz | Maintenance Way: | Front |
| Best Viewing Angle: | H: 160°; V:160° | Frame Size: | Custom Made |

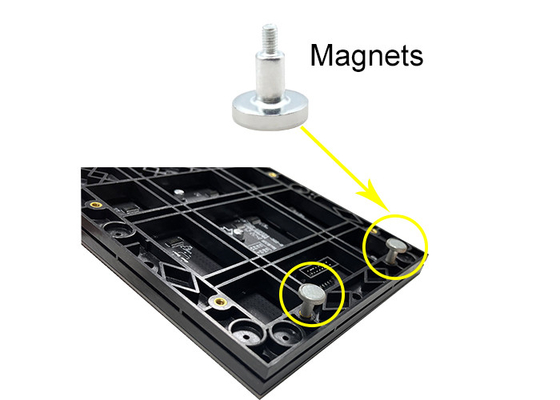

| Fixing Method: | Magnetic | Module Interface: | Soft Connection(wired) |
| Highlight: | Magnetic Module Form LED Screen |
||

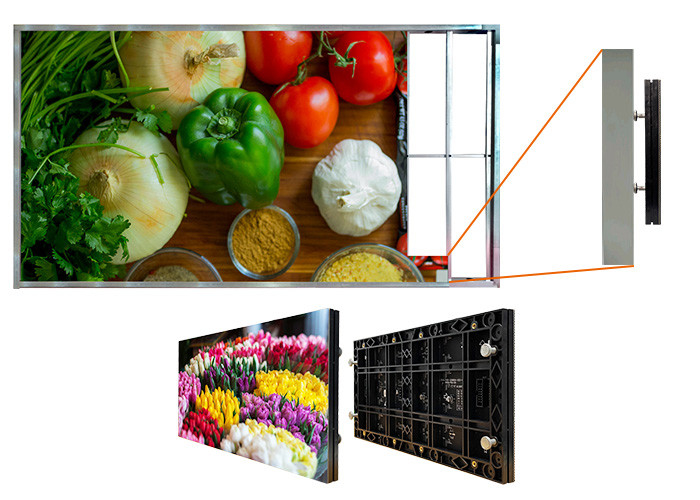

Magnetic Module Form LED Screen Without Cabinet P1.2 P1.5 P1.8 P2 P2.5
Quick details of P2.5 LED Screen Without Cabinet
1. Brightness: Maximum 800nits
2. Video frame rate: ≥60 Hz
3. Grey Level: 12-16bit
4. Life Time: >100,000 Hours
5. Maintenance way: Front
Product Parameters(1.2mm 1.8mm 2mm 2.5mm)
| Pixel pitch | 1.25mm | 1.86mm | 2mm | 2.5mm |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 256×128 | 172×86 | 160×80 | 128×64 |
| Physical density | 640000 dots/㎡ | 289050 dots/㎡ | 250000 dots/㎡ | 160000 dots/㎡ |
| LED type | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Maintenance way | Front | Front | Front | Front |
| Best viewing distance | ≥1.2m | ≥1.8m | ≥2m | ≥2.5m |
| Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
| Driving method (Constant Current) | 1/64 Scan | 1/43 Scan | 1/40 Scan, | 1/32 Scan |
| Video frame rate | ≥60 Hz | |||
| Refresh rate | over 3840Hz | |||
| Brightness | ≥800nits | |||
| Grey Level | 12-16bit | |||
| Ingress protection | IP43 | |||
| Life Time | >100,000 Hours | |||
| The rate | <0.0002 | |||
Main advantages of LED Screen Without Cabinet
1. High cost performance, cost saving and reduced maintenance cost.
2. Full front maintenance design, easy and convenient for maintenance.
3. Easier heat dissipation.
4. The entire screen area is not fixed and can be customized.
5. Components are highly replaceable.
Applications of LED Screen Without Cabinet
1. Live show, conference, control, meeting room.
2. Commercial Ads for shopping mall, store, restaurants.
3. Signage for school, hospital, church.
4. Information board, Background, etc.
After-sell Service
1. 2 years warranty and failure maintenance of LED panels.
2. 24-hour hotline service, including counseling and technical guidance.
3. Engineering technical service.
4. Free remote control debuggine serice if you need.
5. Frame assembly drawings and installation instructions
FAQ:
1. Can your factory accept OEM or ODM?
Yes, We can accept OEM and ODM,.and can print logo.
2. Do you provide any free spare parts in each order?

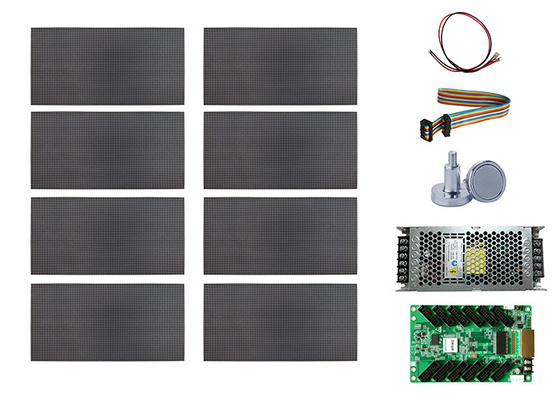

Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
3. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
4. What if something goes wrong during installation?
First of all, we will test all components before shipping to you to ensure there are no product problems. Secondly, if there is a problem during the assembly process, we will have professional engineers and technicians to solve your problem.
5. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We have professionals following up the whole process.
