| Place of Origin: | Shenzhen China |
| Brand Name: | KAILITE |
| Certification: | CE RoHS UL FCC CCC ISO9001 |
| Model Number: | P1.86 GOB |
| Minimum Order Quantity: | 2 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case or flight case |
| Delivery Time: | About 22-24 days on average |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 8000 square meters per month |
| Product Name: | P1.86 GOB Splicing Poster LED Screen | Screen Part Size: | 640mm(W)*1920mm(H) |
|---|---|---|---|
| Control Method: | WIFI, Network Cable | Maximum Synchronous Screen Size:: | 4480mm(Width) By 1920mm(Height) |
| Number Of Splicing: | 2-7 UnitsSingle Unit Resolution | Refresh Rate: | 3840Hz |
| Controller Brand: | Novastar | Surface Treatment: | GOB(Chip On Board) |
| Highlight: | Left And Right Splicing Poster Screen,Splicing Poster Screen,Synchronized Images GOB Panel |
||

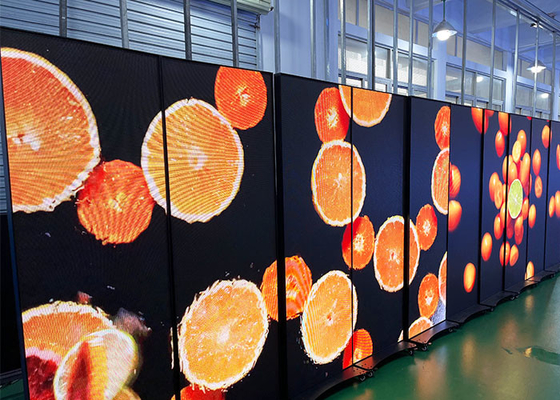

Left And Right Splicing Poster Screen synchronized images GOB Panel
Quick details of P1.86 GOB Splicing Poster LED Screen
1, Single unit resolution: 344*1032
2, Module Size: 320*160mm
3, Best viewing angle: H: 160°; V:160°
4, Life span: >100,000 Hours
5, Ingress protection: IP40
Specification of products(P1.86 P2 P2.5)
| Item | P1.86 | P2 | P2.5 |
| Pixel pitch | 1.86mm | 2mm | 2.5mm |
| Module size | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 172×86 | 160×80 | 128×64 |
| Physical density | 289050 dots/㎡ | 250000 dots/㎡ | 160000 dots/㎡ |
| LED type | SMD1515 | SMD1515 | SMD2020 |
| Cabinet size | 640*1920*30mm | 640*1920*30mm | 640*1920*30mm |
| Maintenance way | Front | Front | Front |
| Best viewing distance | ≥1.8m | ≥2m | ≥2.5m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥800nits | ≥800nits | ≥800nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP40 | IP40 | IP40 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 |
Features of GOB Splicing Poster LED Screen
1. GOB surface: dustproof, waterproof, anti-static and anti-corrosion.
2. High degree of freedom, can be spliced or used separately.
3. Movable, with built-in wheels, easy to move.
4. Simple control, content can be switched through mobile phone.
5. The surface is less prone to damage and has a longer lifespan.

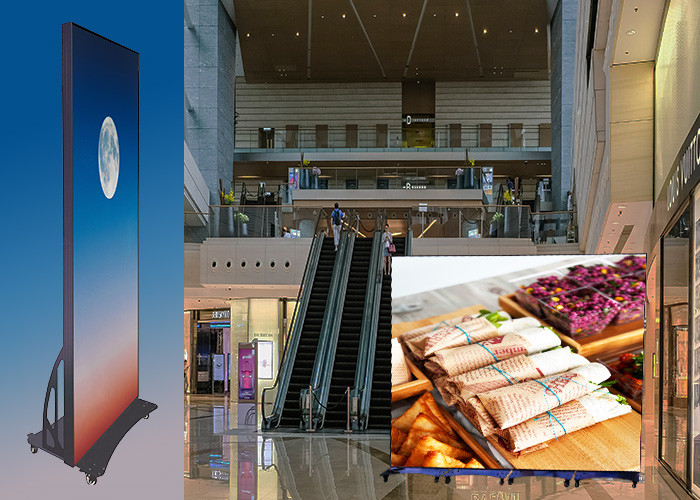

Applications of GOB Splicing Poster LED Screen
1. Commercial places: shopping malls, shops
2. Transportation hubs: airports, train stations, subway stations
3. Cultural and entertainment places: theaters, cinemas, KTV
4. Financial institutions: banks, stock exchanges
5. Office places: office buildings, company offices

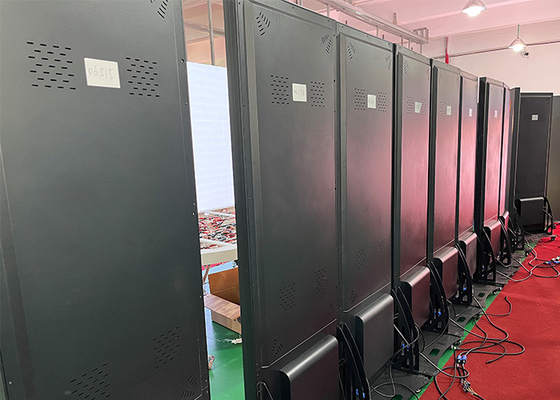

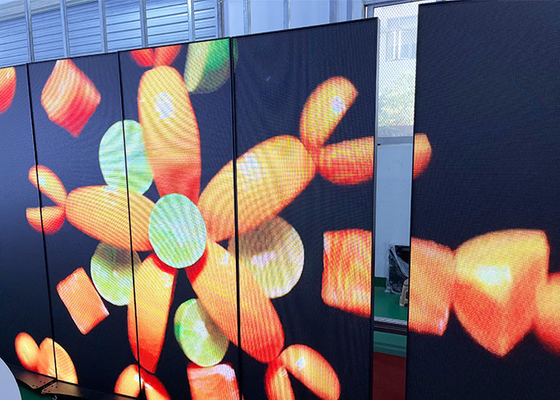

Cases
Advantages:
1. Wide range of uses.
2. Freely play content according to settings.
3. Easy to store and move.
4. The color of the GOB panel is more uniform and balanced.
5. Simple operation and easy to use.
After-sell service:
1) Failure maintenance of LED panels.
2) Free technical training for how to use and handle the software.
3) Remotely diagnose technical issues when playback is abnormal.
4) Warranty service.
FAQ:
1. What's your package and shipping way?
Goods are packed with flight case or wooden case; delivered by air or sea.
2. Are the edges of the screen easily damaged?
GOB panels are high in strength and generally not easily damaged.
3. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
4. Is it okay to print my logo on your product?
Yes, we provide free printing service on the back of the cabinet.
5. What is the entire transaction process?
Pay the deposit first. After receiving the deposit, we will make the product. After paying the balance, we will send it to you through logistics.
Contact Person: Dalton
Tel: +8618314988649
