| Place of Origin: | China (Mainland) |
| Brand Name: | KAILITE |
| Certification: | CE, FCC, ROHS |
| Model Number: | P3.91 |
| Minimum Order Quantity: | 2 Square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden packing; flight case packing |
| Delivery Time: | 7-20 work days |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 8000 square meters per month |
| Pixel Pitch: | 3.91mm | Pixel Configuration : | 1R1G1B |
|---|---|---|---|
| Moduel Size: | 250*250mm | Physical Density: | 65536 Dots/㎡ |
| Led Chip: | SMD2121 | Moduel Resolution: | 64*64 |
| Brightness: | ≥1300cd | Ingress Protection: | Front: IP67; Back: IP65 |
| Highlight: | led screen rental,led video panels |
||
Waterproof rental led display 500*500/500*1000mm high definition die-casting aluminum cabinet
Advantage:
1.New version of cabinet can be combined with the old version of cabinet which solve further problems you might have. (Only except the cables between cabinets require to be lengthened)
2. Ultra-thin,ultra-light and comfortable, integrated cast aluminum design makes assembly and disassembly more convenient.Seamless splice makes the screen very flat like a mirror. Let's seize the hearts of the audience, lock the whole screen, safe and fast, quality assured.
3. High-definition and perfect image gives you a visual feast; it is suitable for all kinds of occasions , such as the splendid hall, innovation technology seminars, star talent and the game; Aries free from the scene, and perfection is near at hand.
4. Closed and detachable power supply box design, high safety coefficient, convenient maintenance which combines the static with dynamic perfectly.
Applications:
------ Trading, financial information display
------ Airport flight information display
------ Stadium Information Display
------ Road traffic information display
------ Performances and gatherings
------ Exhibition and rental
Specifications
|
Item P3.91
|
|||
|
Main parameters |
Technical parameters | UNIT | parameters values |
|
Module Parameters |
Pixel pitch | MM | 3.91 |
| Panel size | MM |
L250*H250 |
|
| Physical density | /㎡ | 65536 dots | |
| Pixel Configuration | R/G/B | 1,1,1 | |
| Driving method | Constan current 1/16scan | ||
| LED Encapsulotion | SMD | 2121 | |
| Display resulotion | Dots | 64*64 | |
| Moduel Power | W | 20 | |
|
Display Parameters |
Viewing Angle | Deg | H120V120 |
| Option Distance | M | 4-28 | |
| Maximum Power | W | 860 | |
| Cabinet Size | MM | L500*H500/L500*H1000 | |
| Frame Frequency | Hz | ≥60 | |
| Refresh Frequency | Hz | ≥1200 | |
| Equilibrium Brightness | CD | ≥1300 | |
| Operation Temperatuer /Humidity |
℃ | -30~+45/ 10%~95% |
|
| Input Voltage | VAC | 220V±10%/110V±10% | |
| Ingress Protection | Front:IP67;Back:IP65 | ||
| Gray Scale/Color | ≥16.7M color | ||
| Brightness Contral | Manual/Automatic | ||
| Input Signal | RF/S-Video/RFB/etc | ||
| Contral Systerm | PCTV+DVI video card+control card+fiber |
||
| MTBF | HOURS | >5000 | |
| Life Time | HOURS | >100,000 | |
|
Lamp Failure Frequency |
<0.0001 |
||
FAQ
1. Why use an LED Screen instead of an LCD Screen?
LED screens are a completely different technology to LCD screens, designed for a different purpose. LCD screens are designed primarily for indoor close viewing on a small scale. LED screens are designed for large scale, high impact projects that can be used outdoors in bright sunlight.
2. How do I decide what screen is right for me?
There a few factors that that determine what screen and size of screen will be right for your event. These include how close your audience are to the screen, the audience size, if your event is indoors or outdoors.
3.What can I show on my LED Screen?
We can help you show anything you want on your screen. Plug in a laptop and show presentations, videos, and slideshows. We can take live video feeds and signals from your computers, vision mixers, or any output source including CV, VGA, HDMI, DVI, SDI, HD-SDI and more.
4.What's your delivery time?
Wthin 15-25 days after receiving deposit.

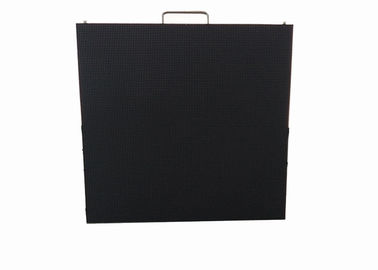

Die-casting Aluminum Cabinet
Wooden case packaging
