| Place of Origin: | China |
| Brand Name: | KAILITE |
| Certification: | CE FCC ROHS |
| Model Number: | P6 |
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight box |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 6500 Square Meters Per Month |
| Pixel Pitch: | 6mm | LED Encapsulation: | SMD3535/1R1G1B |
|---|---|---|---|
| Module Size: | 192mm*192mm | Module Resolution: | 32dots*32dots |
| Power Consumption(w/m²): | 400-850 | Scan Mode: | 1/8 Scan |
| Highlight: | led panel outdoor,led outdoor advertising screens |
||
P6 Outdoor LED Video Wall Display Seamless Installation Great Visual For Public
Product Feature
1) Having good image and no mosaic.
2) Better viewing effect for both text & graphic and video.
3) Having larger viewing angle
4) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance
Technical Parameter
| Item | Outdoor full color led display |
| Model Number | P6 |
| Pixel Pitch | 6mm |
| Pixel Density(dots/m²) | 27777 dot/m2 |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD3535 |
| Module size(mm) | 192*192 |
| Module Resolution(dots) | 32*32 |
| Min.Viewing Distance(m) | ≥6 |
| Brightness(cd/m²) | ≥6500 |
| Viewing Angle(degree) | H:140° V:140° |
| Average Power Consumption(w/m²) | 400-850 |
| Scan Mode | 1/8 |
| Protection Level | IP65 |
| Cabinet Size(mm) | 576*576 |
| Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
| Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
| Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
| Color | 64g color(on the condition of 4096 gray scale) |
| Horizontal/Vertical viewing angle | <120° |
| Gray Scale | Recommended 14BIT |
| Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Application Case

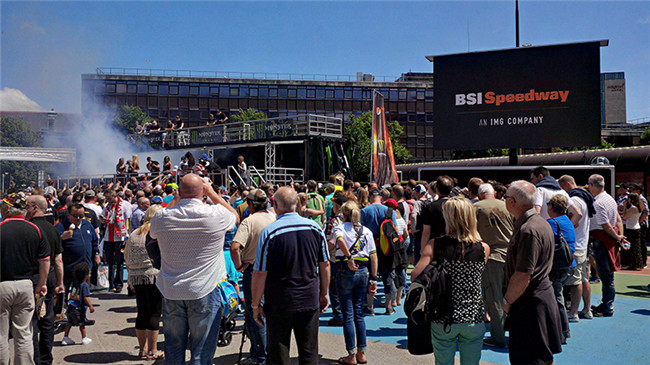

Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
Company
SHENZHEN KAILITE OPTELECTRONIC CON.,LTD , located on Shenzhen,China, is a led screen manufacturer for 9 years.We specialize in designing, researching, manufacturing and selling all kinds of led displays.Our object is to provide high quality product and service for our customers.
we provide led screen both indoor and outdoor including 1.677mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm. Beside indoor and outdoor led screen ,we also provide the DJ booth ,Taxi Top screen etc. All our LED products have achieved CE,FCC,ROHS ISO9001 certifications etc.
Why choose us
1. Competitive Price
Our company locate at SHIYAN industrial zones,SHENZHEN,CHINA.We control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top LED display factory since 2009, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
4. Professional services
We have 5-6 professional and technical personnel Who are work in the LED display industry more than 10 years.We hope to be able to better provide customers with the best solution. Let customers use the rest assured.
Thank you for viewing our web.For more detail just add Scarlett contact(whatsapp/wechat/skype+8618819440154)
